Mercedes Sprinter 4x4 Conversion

The Concept

Why Patrol Running Gear?

The Nissan Patrol Y61 is one of the most proven and parts-available 4x4 platforms in southern Africa. By transplanting the Patrol's gearbox, front and rear differentials, suspension geometry and transfer case into the Sprinter's body, the result is a van with true off-road capability backed by easily-sourced Patrol parts anywhere on the continent.

The Sprinter's OM646 diesel engine is mated directly to the Patrol gearbox via a custom adapter — retaining the Sprinter's fuel efficiency while gaining the Patrol's low-range transfer case and locking differentials.

Base vehicle	Mercedes Sprinter 906 (2WD)
Engine	Mercedes OM646 2.2L CDI
Gearbox	Nissan Patrol Y61 manual
Transfer case	Nissan Patrol Y61 (Hi/Lo)
Front diff	Nissan Patrol Y61
Rear diff	Nissan Patrol Y61
Subframes	Custom fabricated (both axles)
Suspension	Nissan Patrol Y61 geometry
Location	Bela-Bela, South Africa

Build Diary

9 Chapters · Start to Finish

Every stage of the conversion is documented on video — from stripping the Patrol donor vehicle through to the finished 4x4.

Part 1

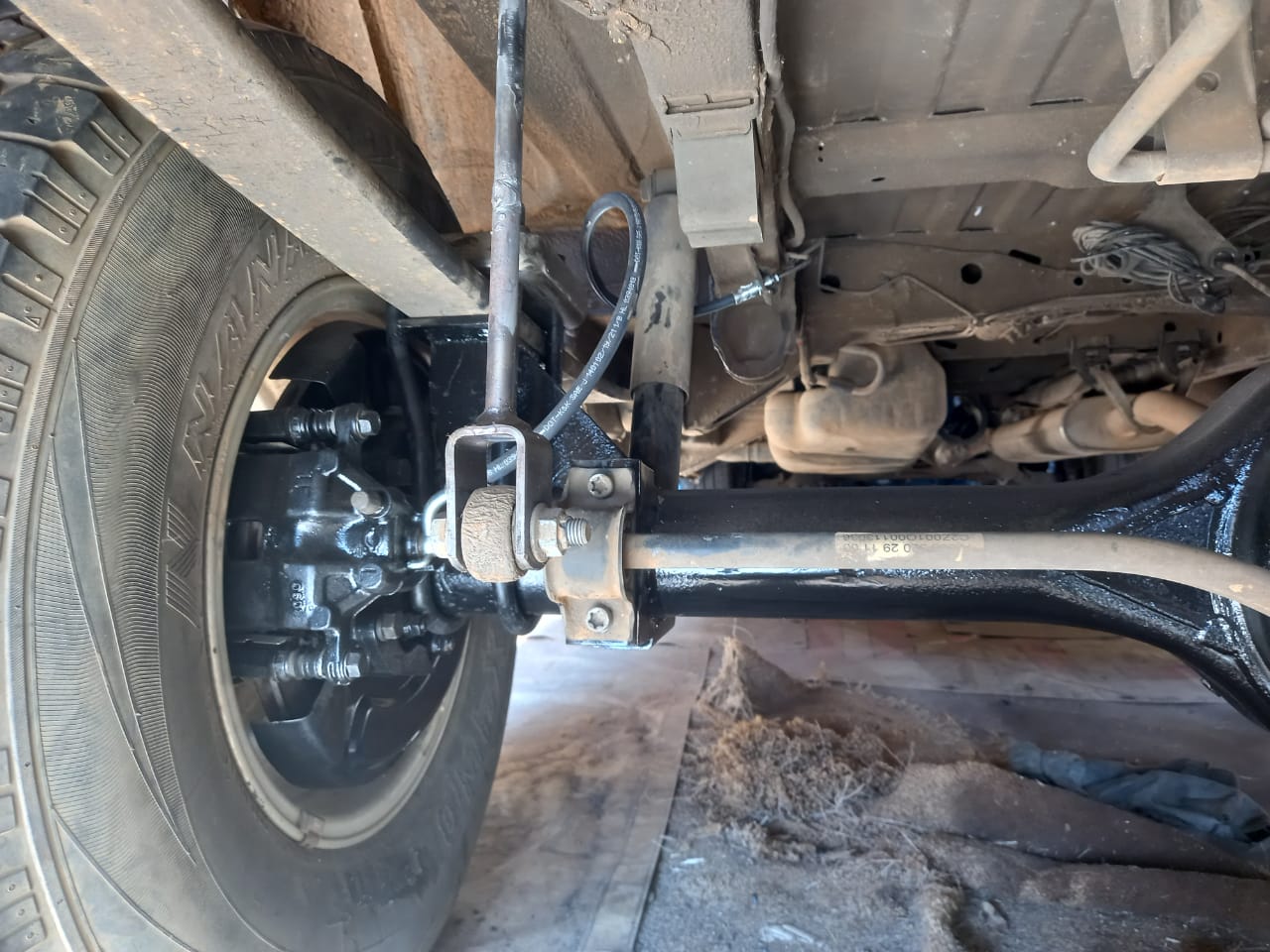

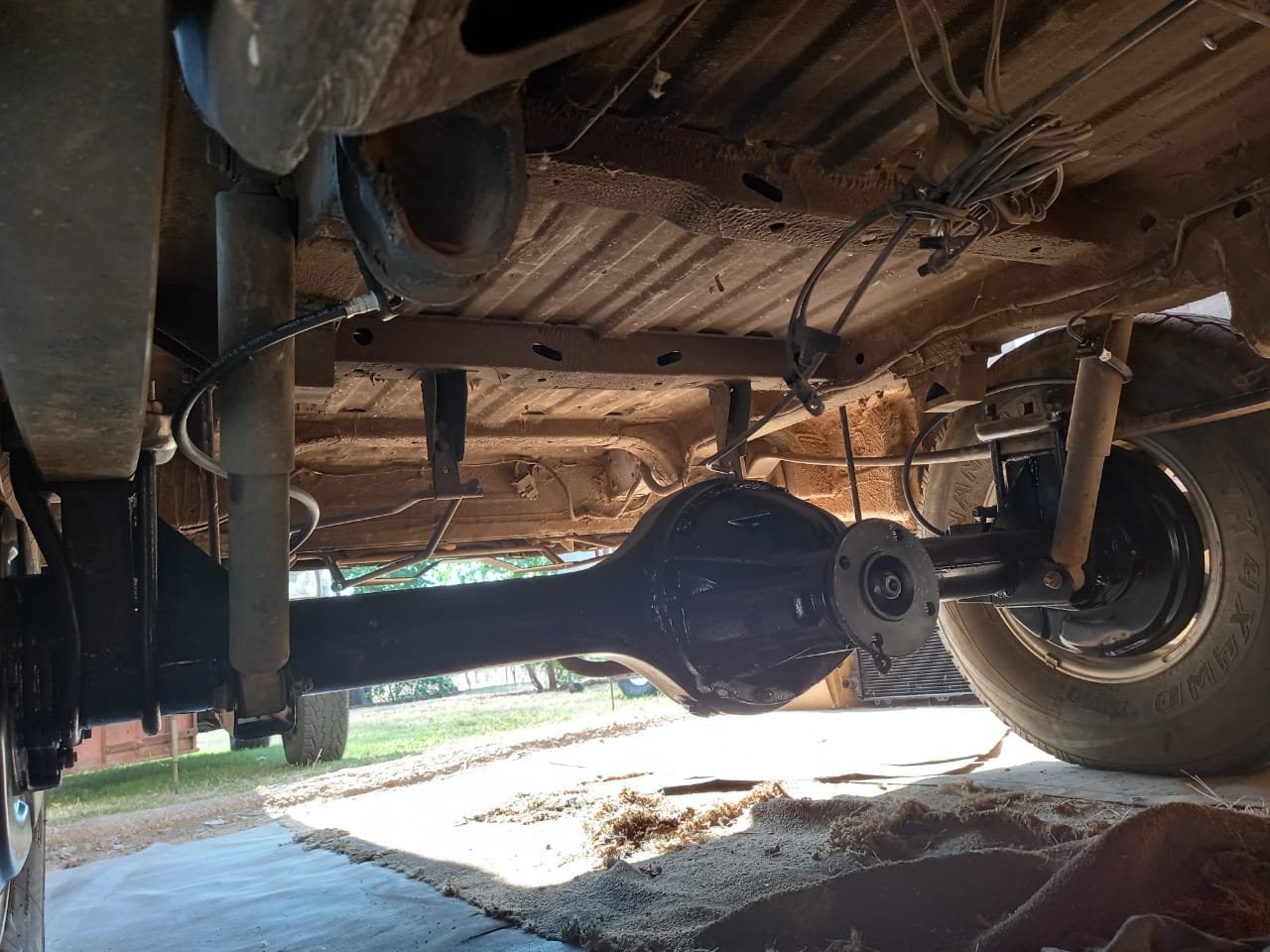

Nissan Patrol Rear Diff Fitting

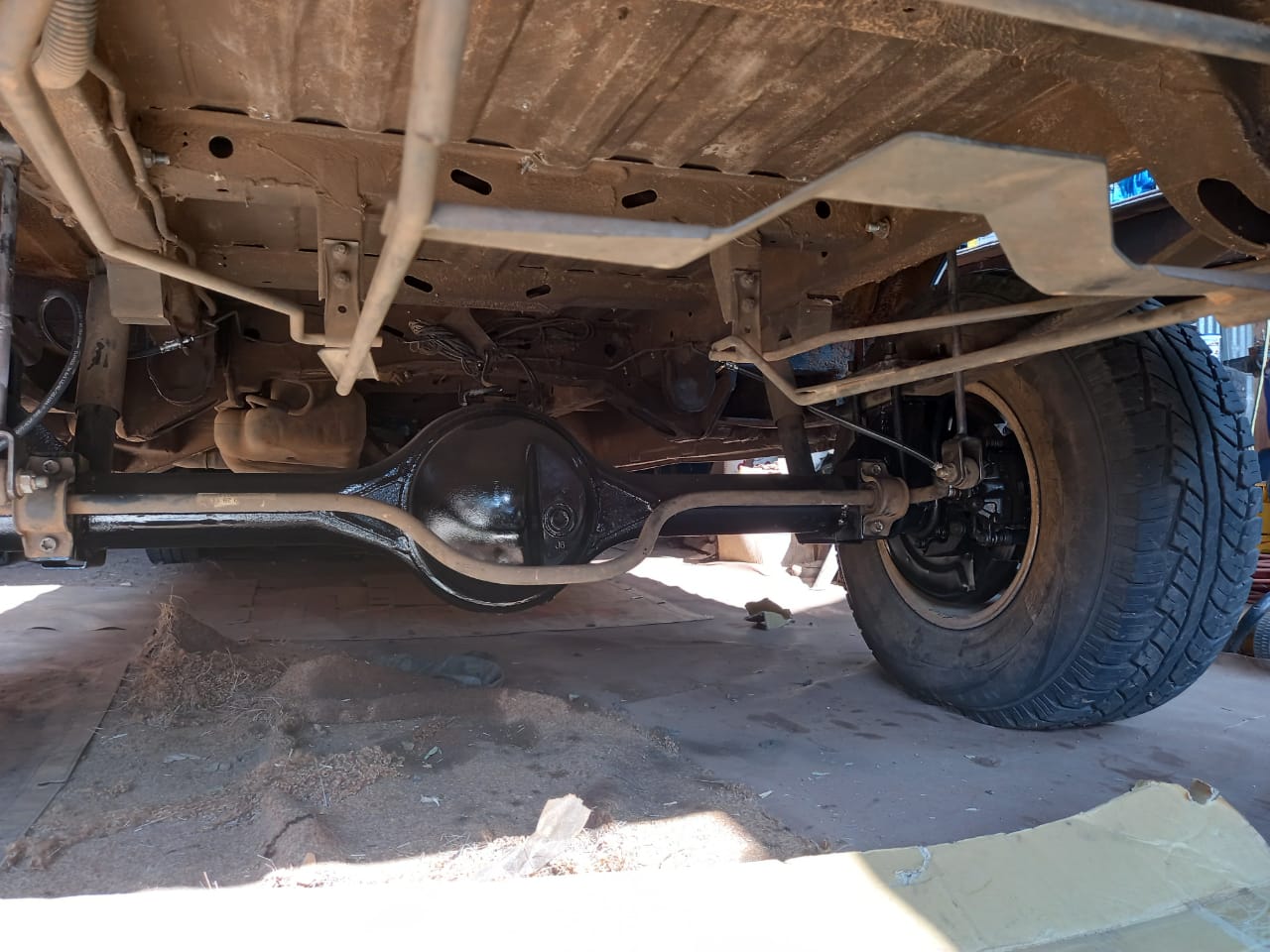

The Nissan Patrol Y61 rear differential is stripped, measured and prepared for transplant into the Sprinter's rear axle position. Custom mounts are designed to locate the diff within the Sprinter's original chassis rails.

Part 2

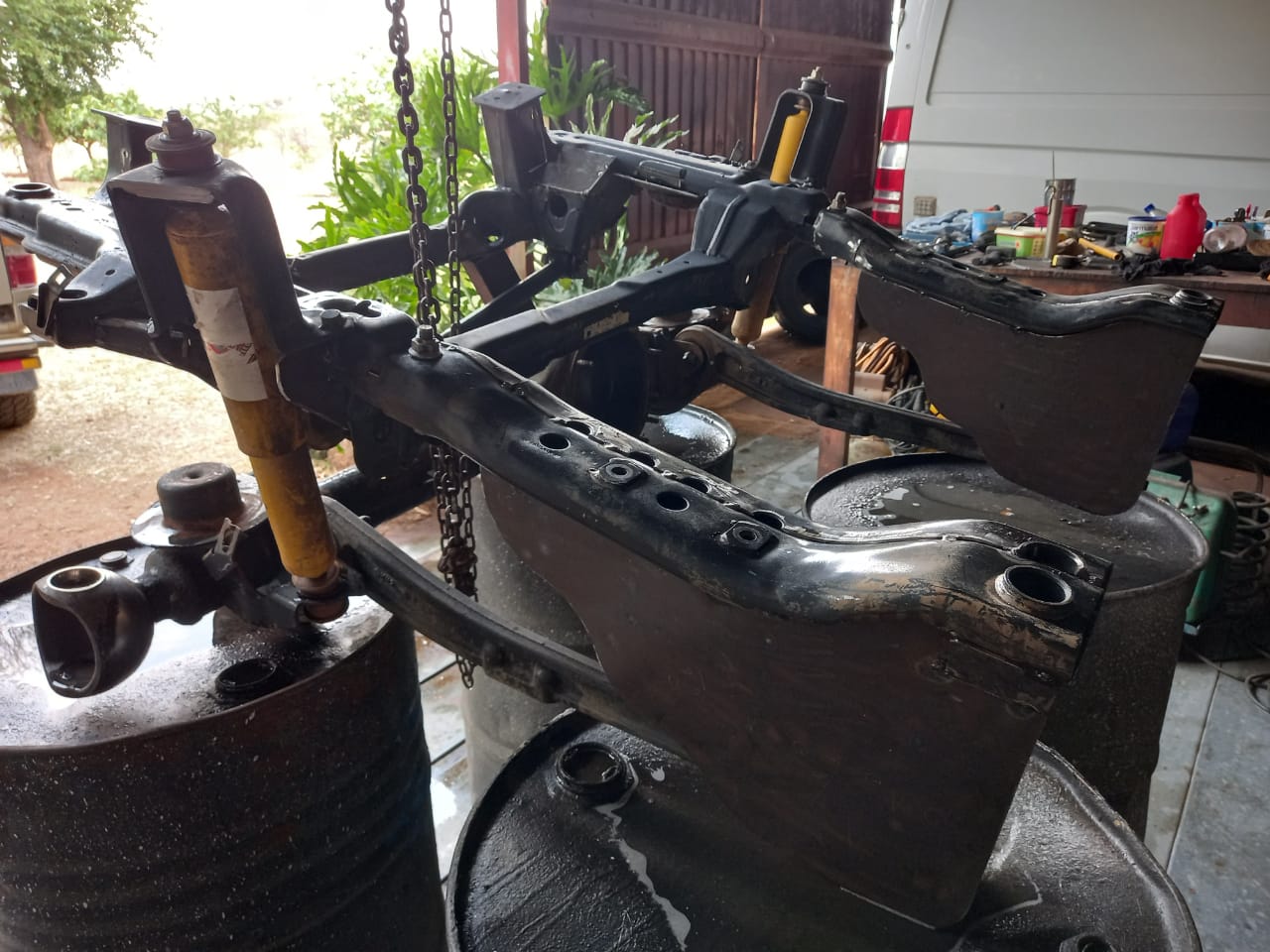

Patrol Suspension Parts — Planning the Subframe

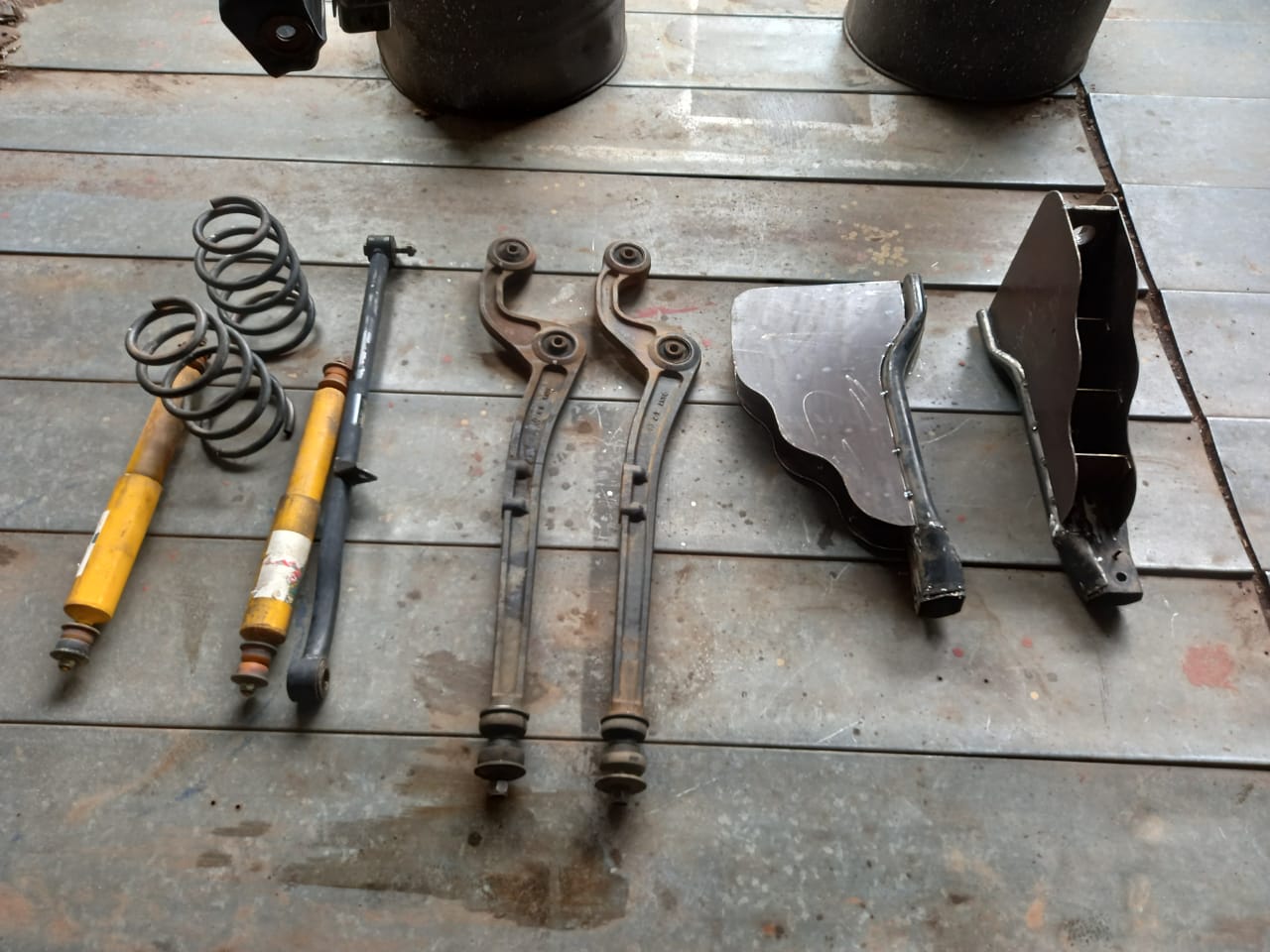

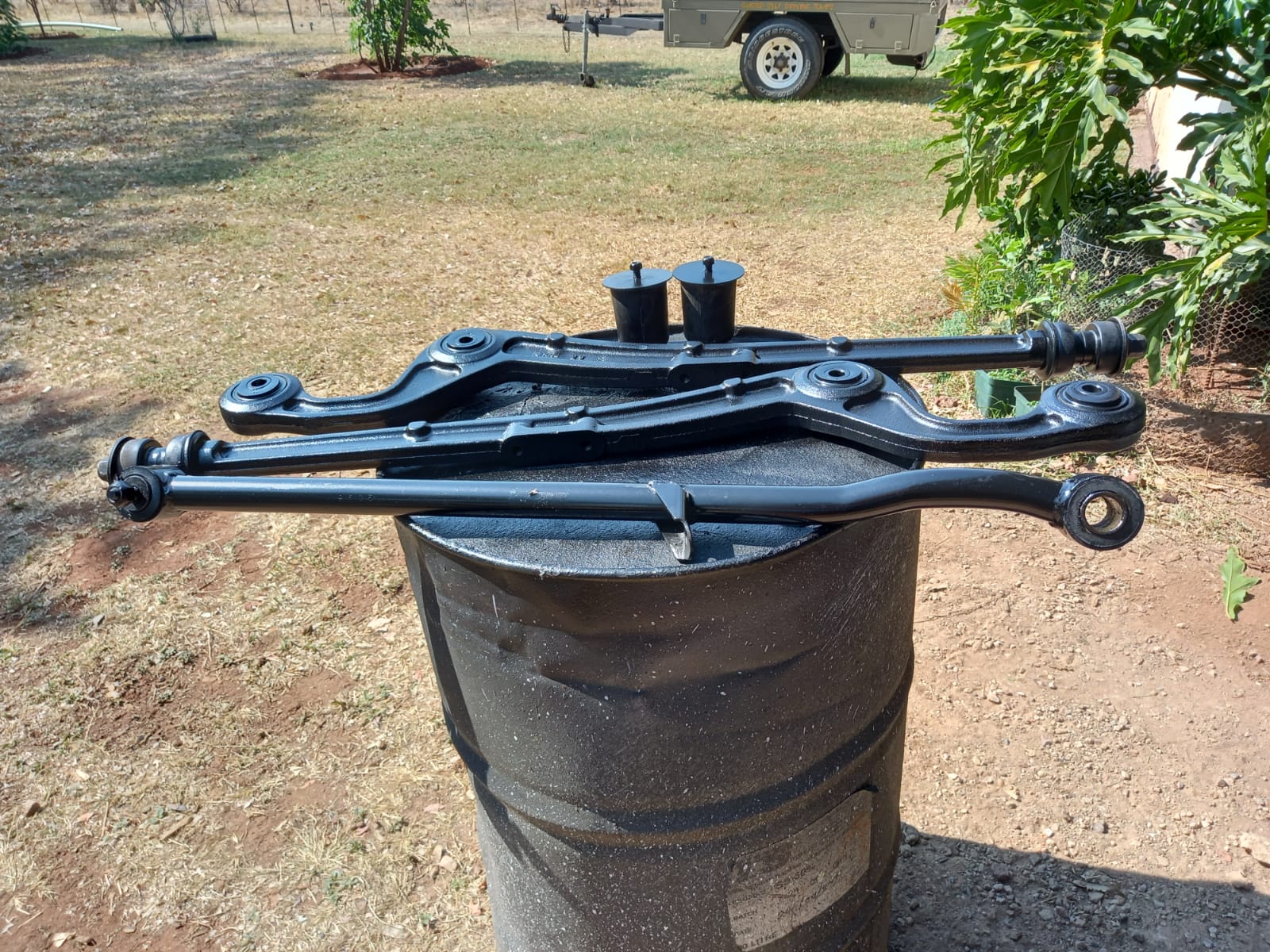

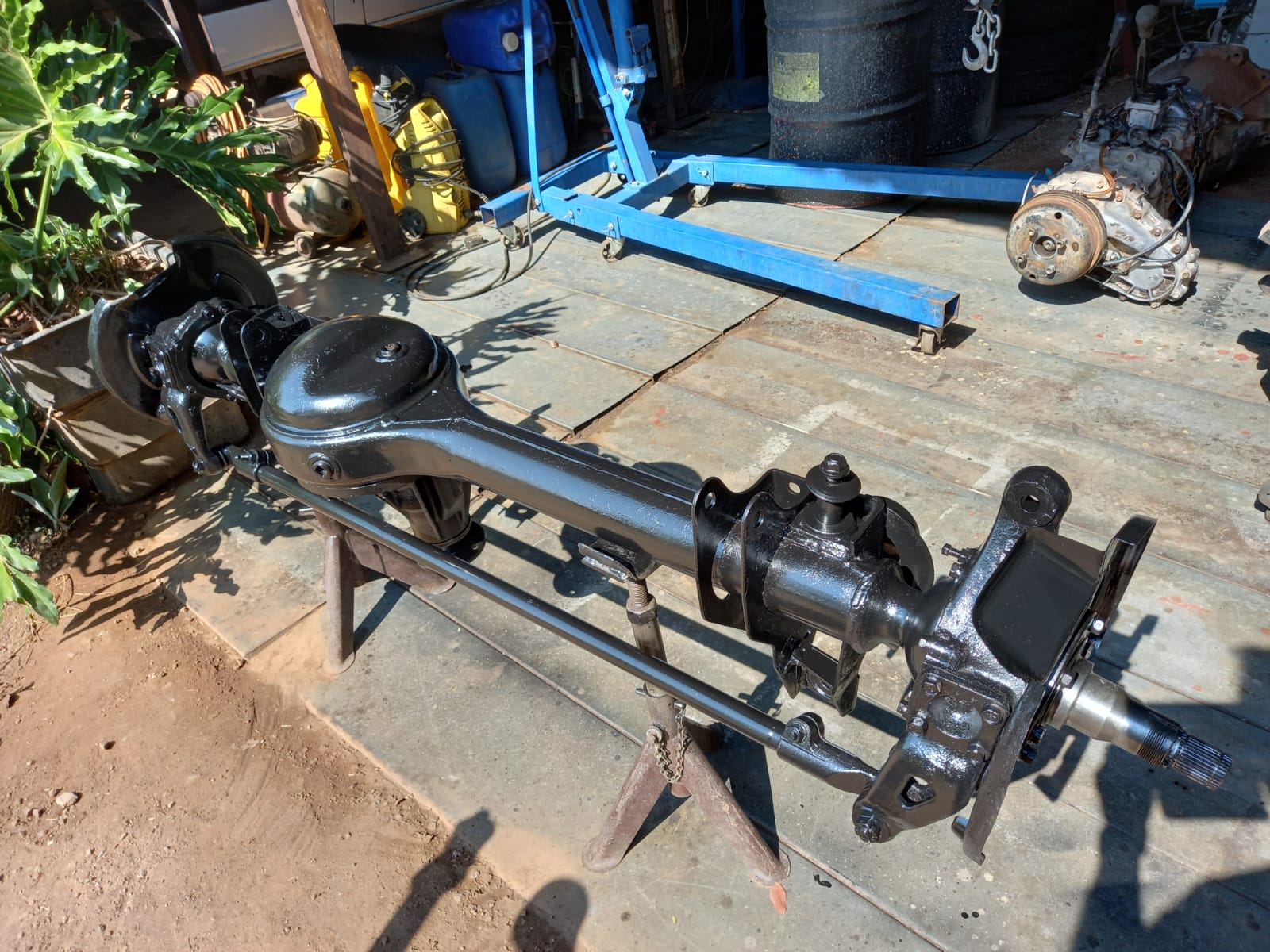

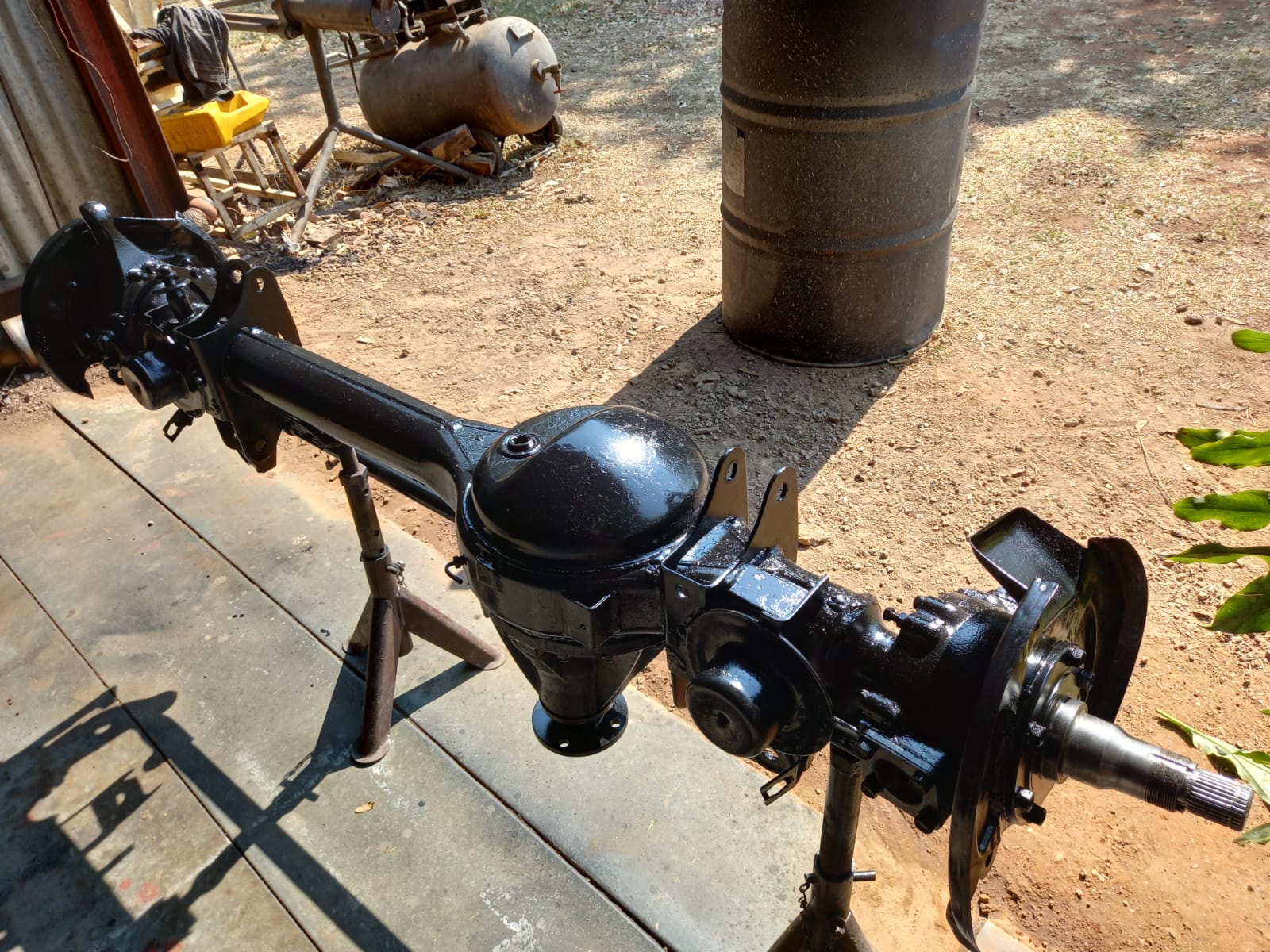

The full Patrol Y61 front suspension components — control arms, diff, steering knuckles — are laid out and measured against the Sprinter's chassis to design the custom subframe that will marry both platforms.

Part 3

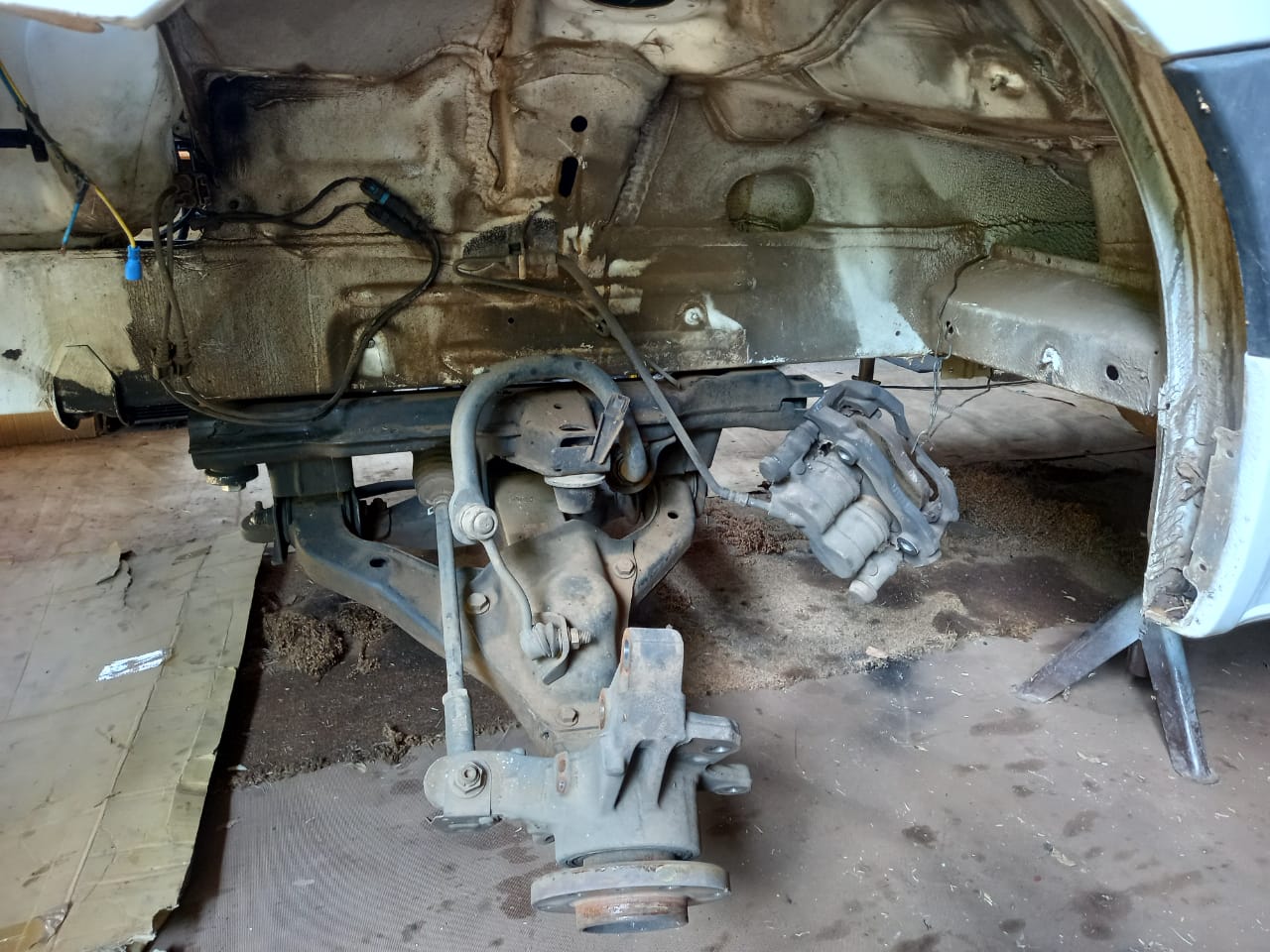

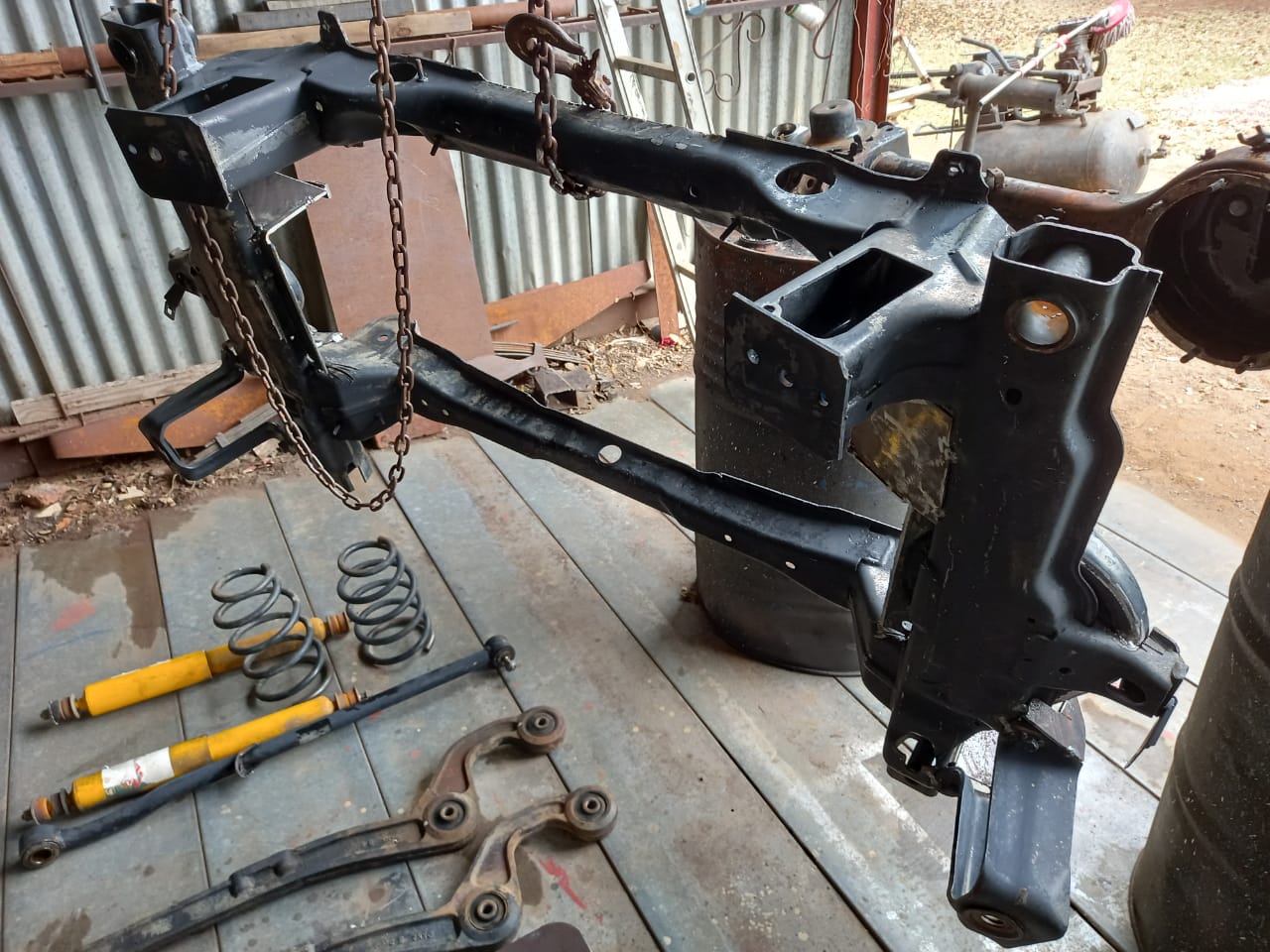

Front Subframe — Tacked & Disassembled for Check

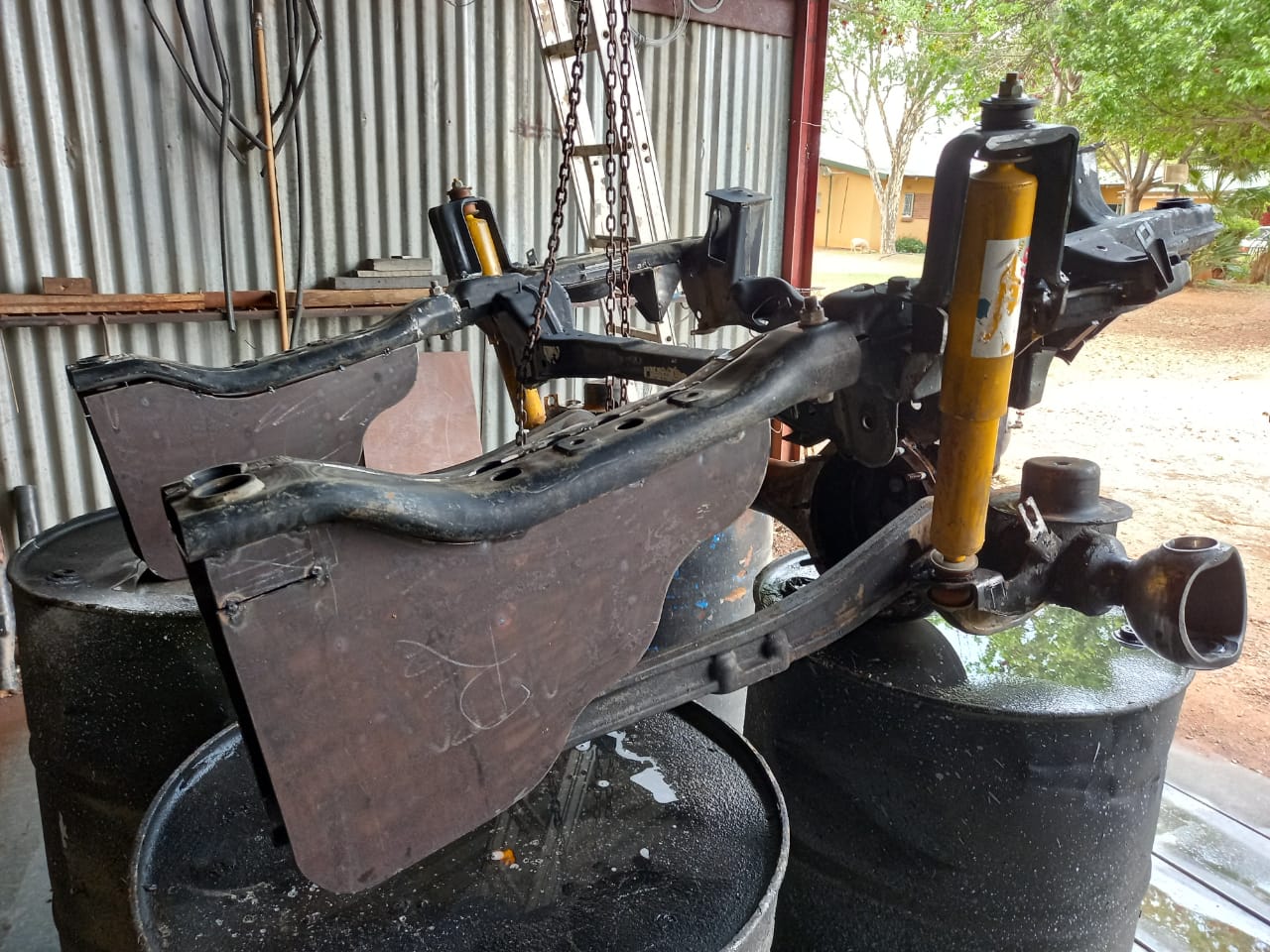

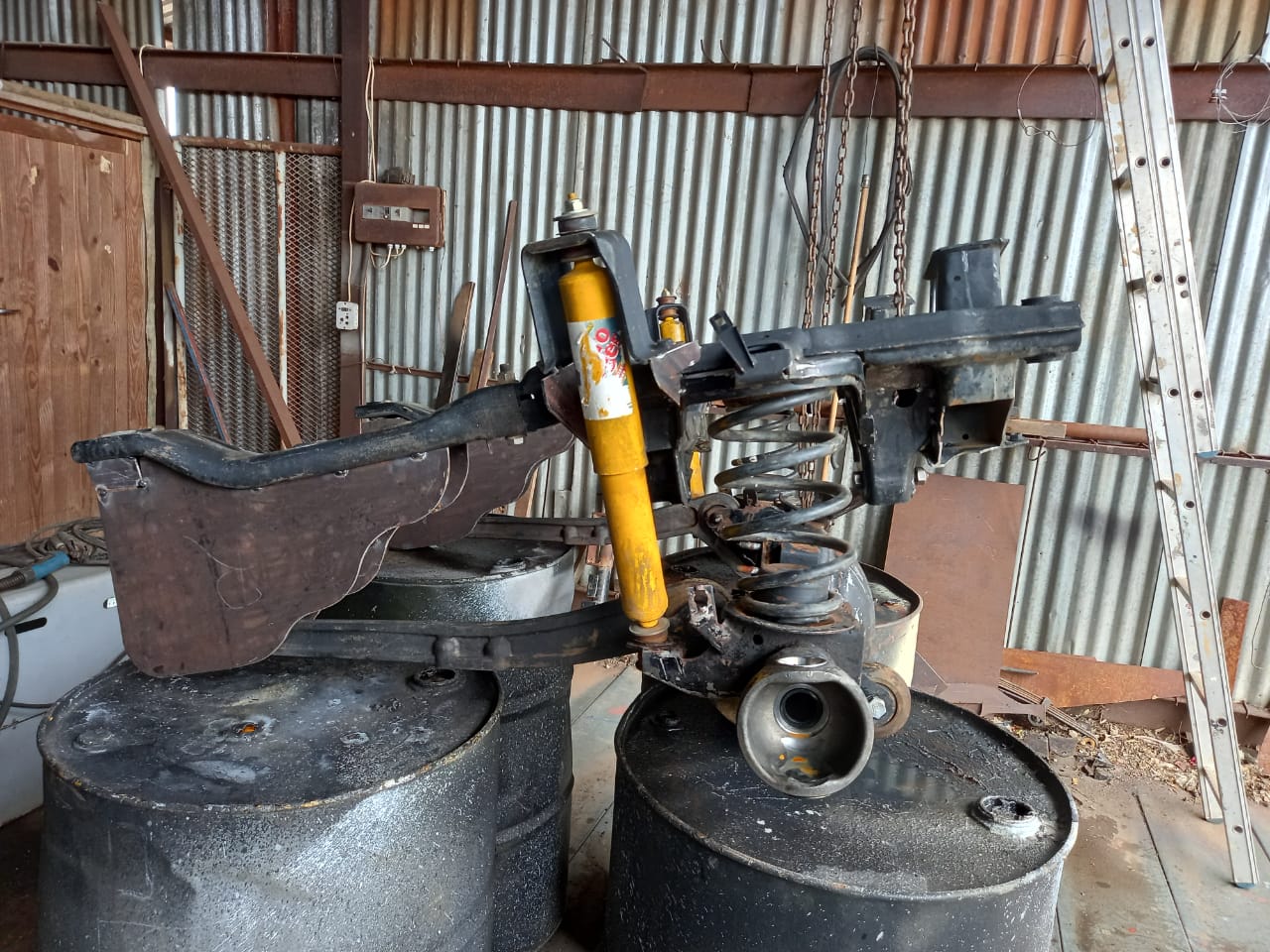

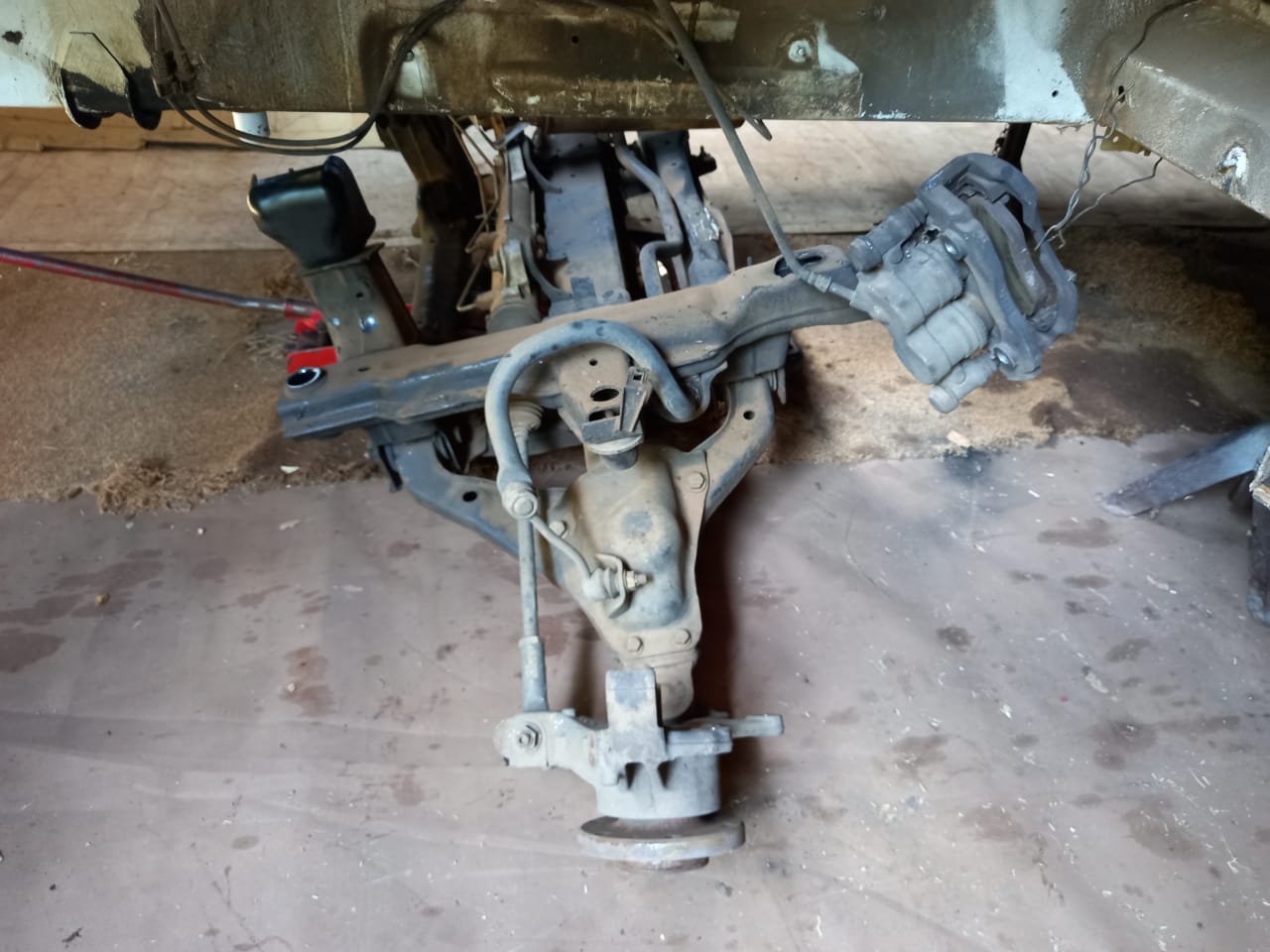

With the suspension mount positions confirmed, the front subframe is tacked together in steel then disassembled to verify all geometry, angles and clearances are correct before final welding.

Part 4

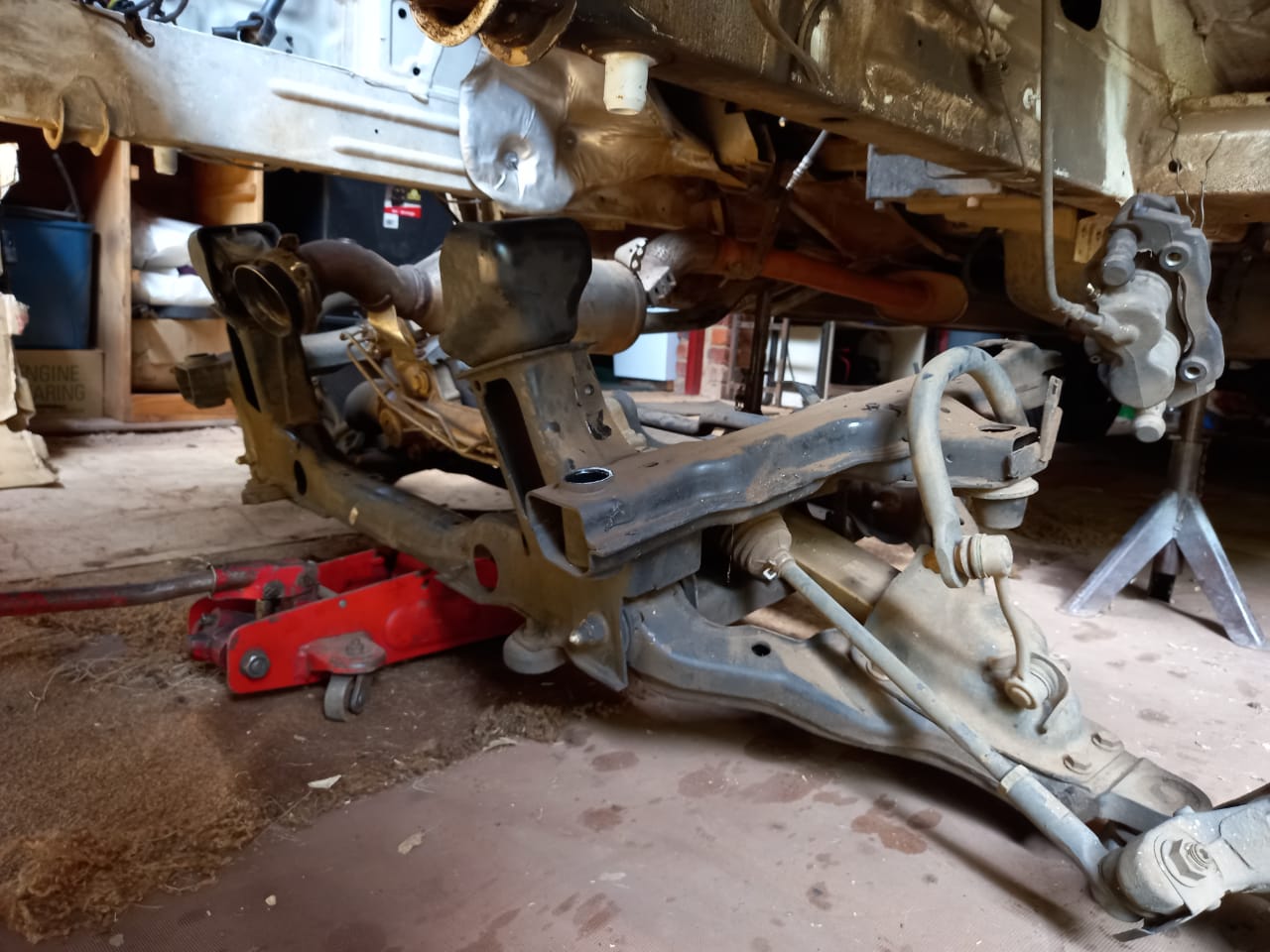

Front Subframe — Final Tack Assembly

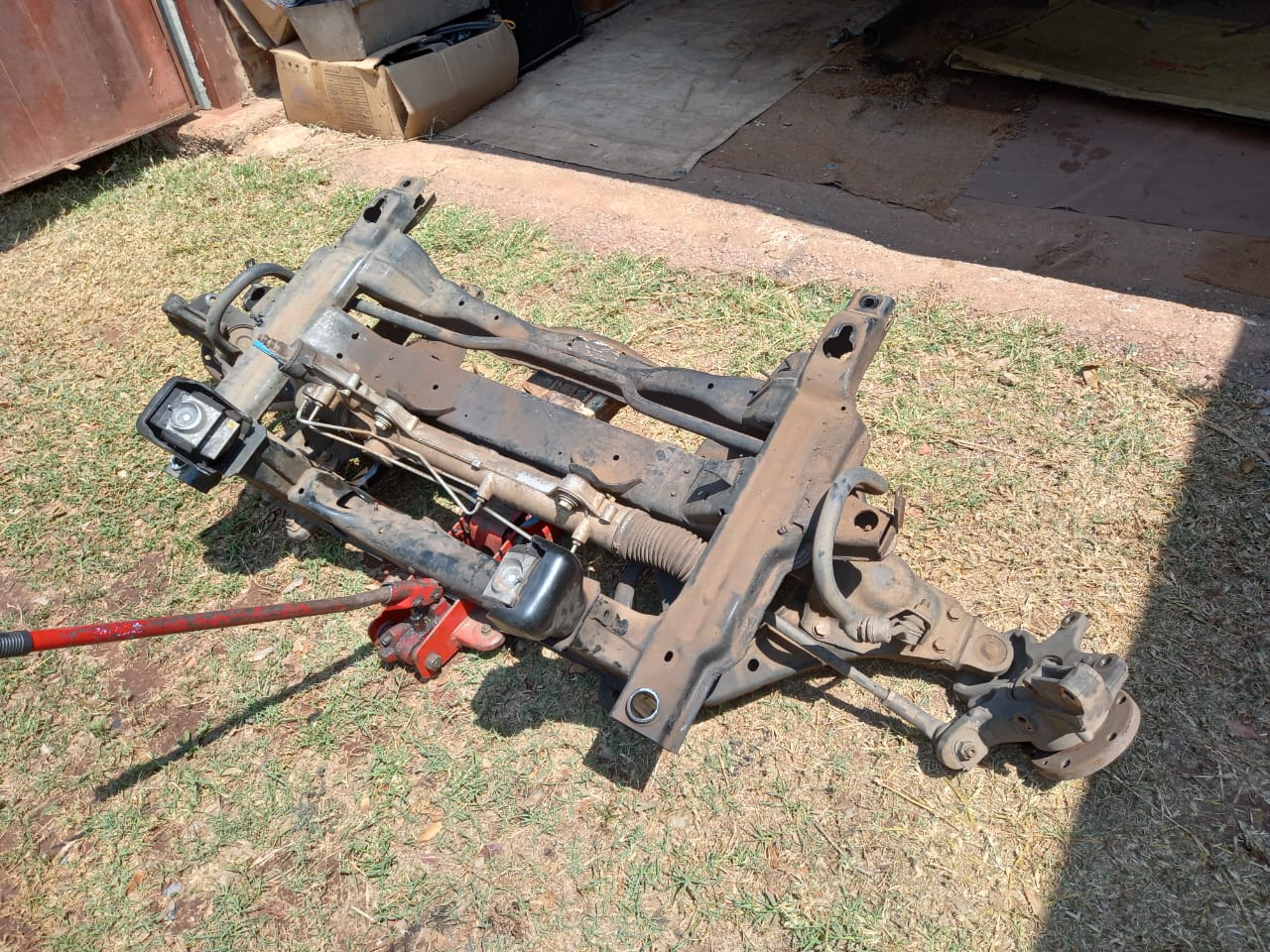

After geometry is confirmed, the front subframe is re-assembled and tacked in its final configuration — all mount points, bracing and differential cradle in their permanent positions, ready for full-penetration welding.

Part 5

Subframe — Fully Welded & Painted

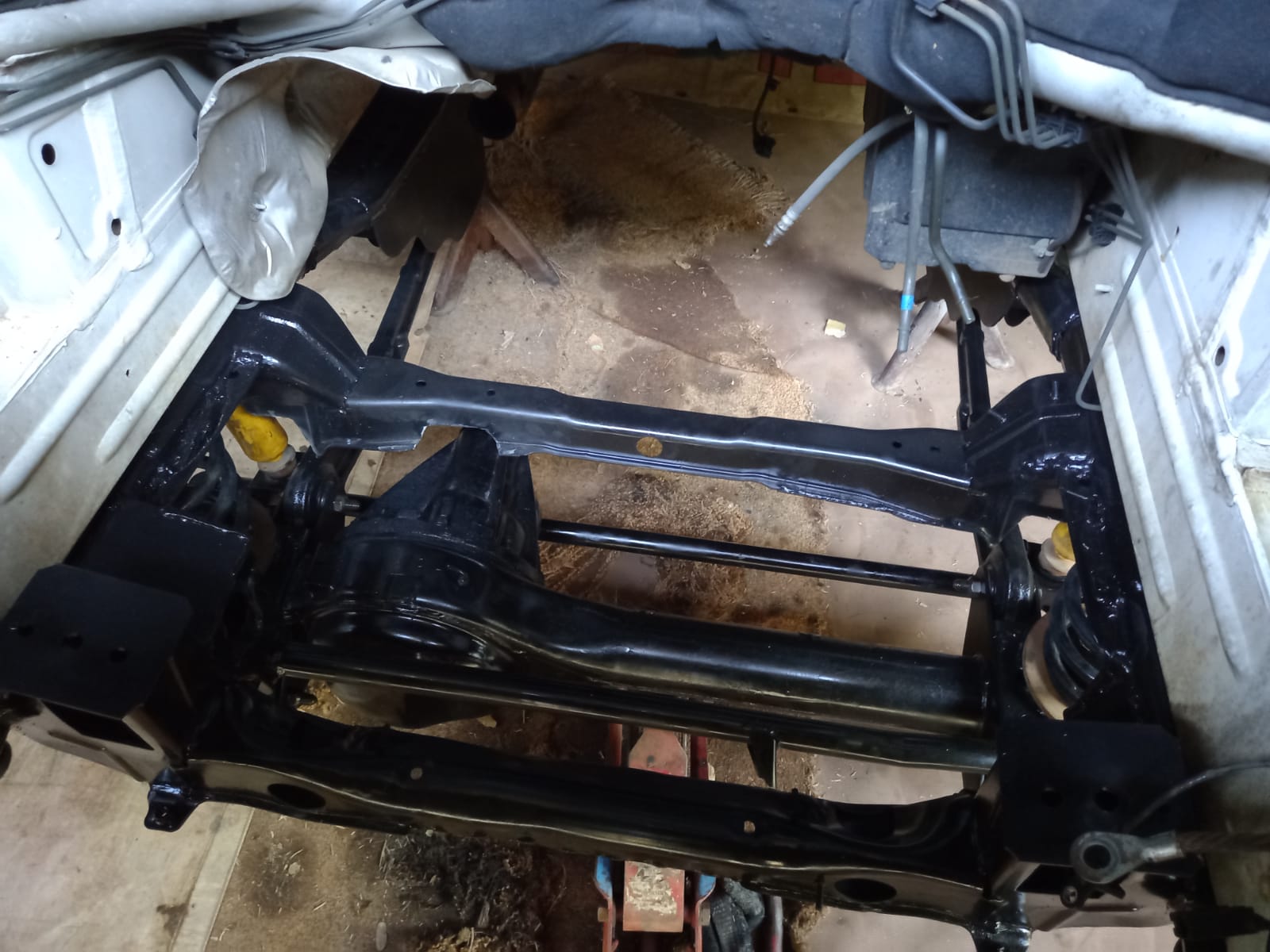

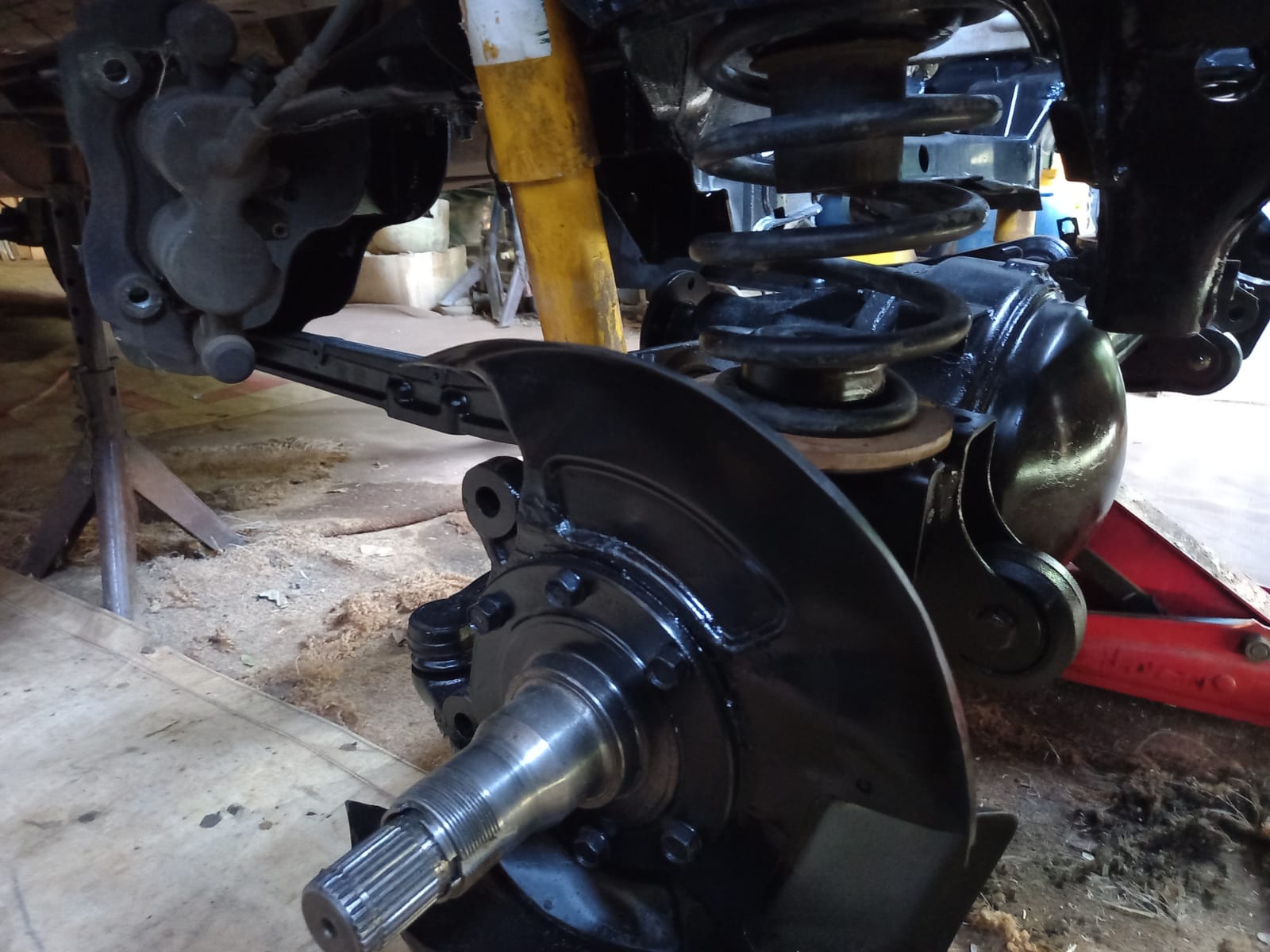

The front subframe receives full penetration MIG welds on all joints, ground smooth, then coated in high-build epoxy primer and gloss black chassis paint — ready for fitment.

Part 6

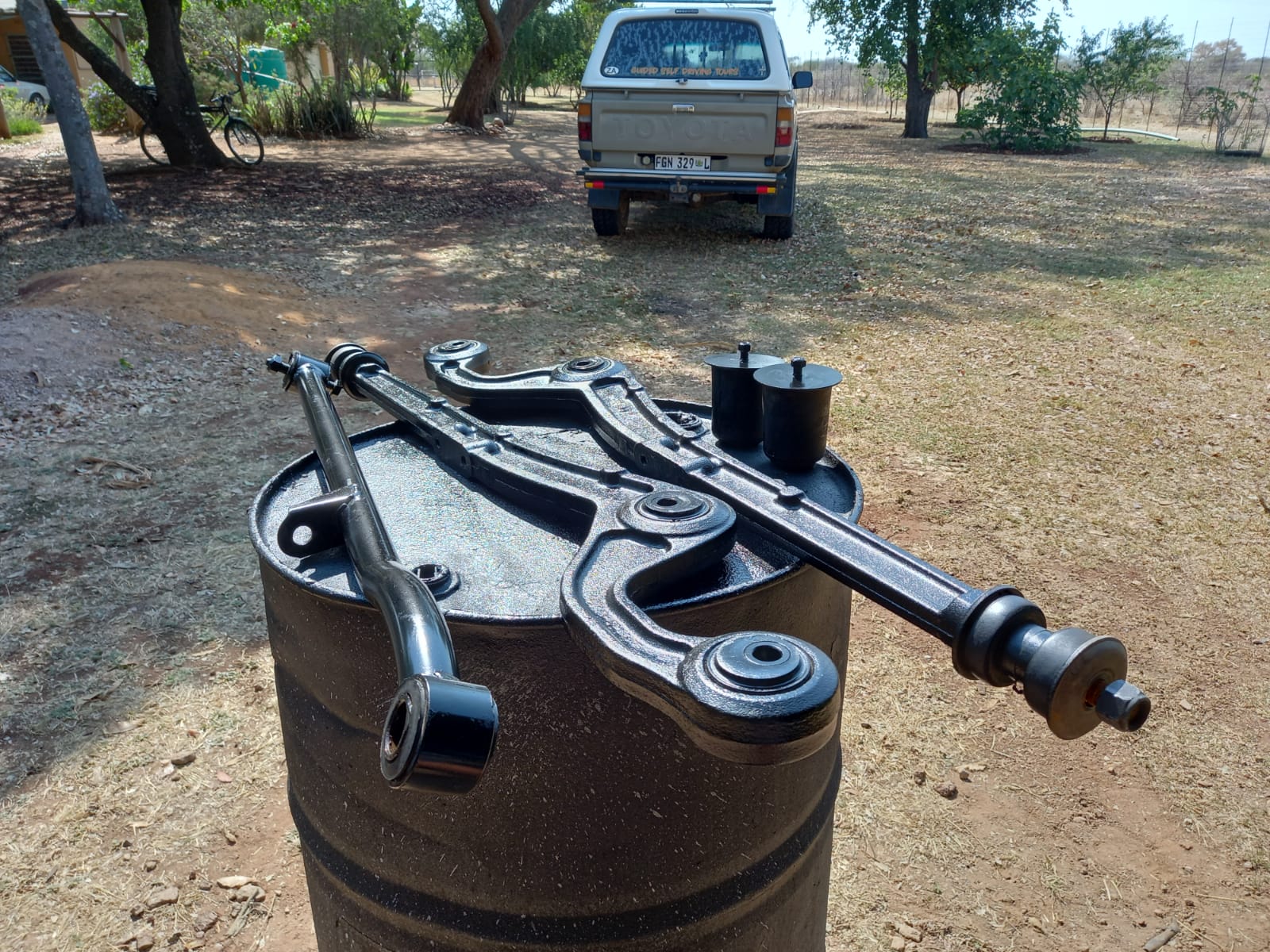

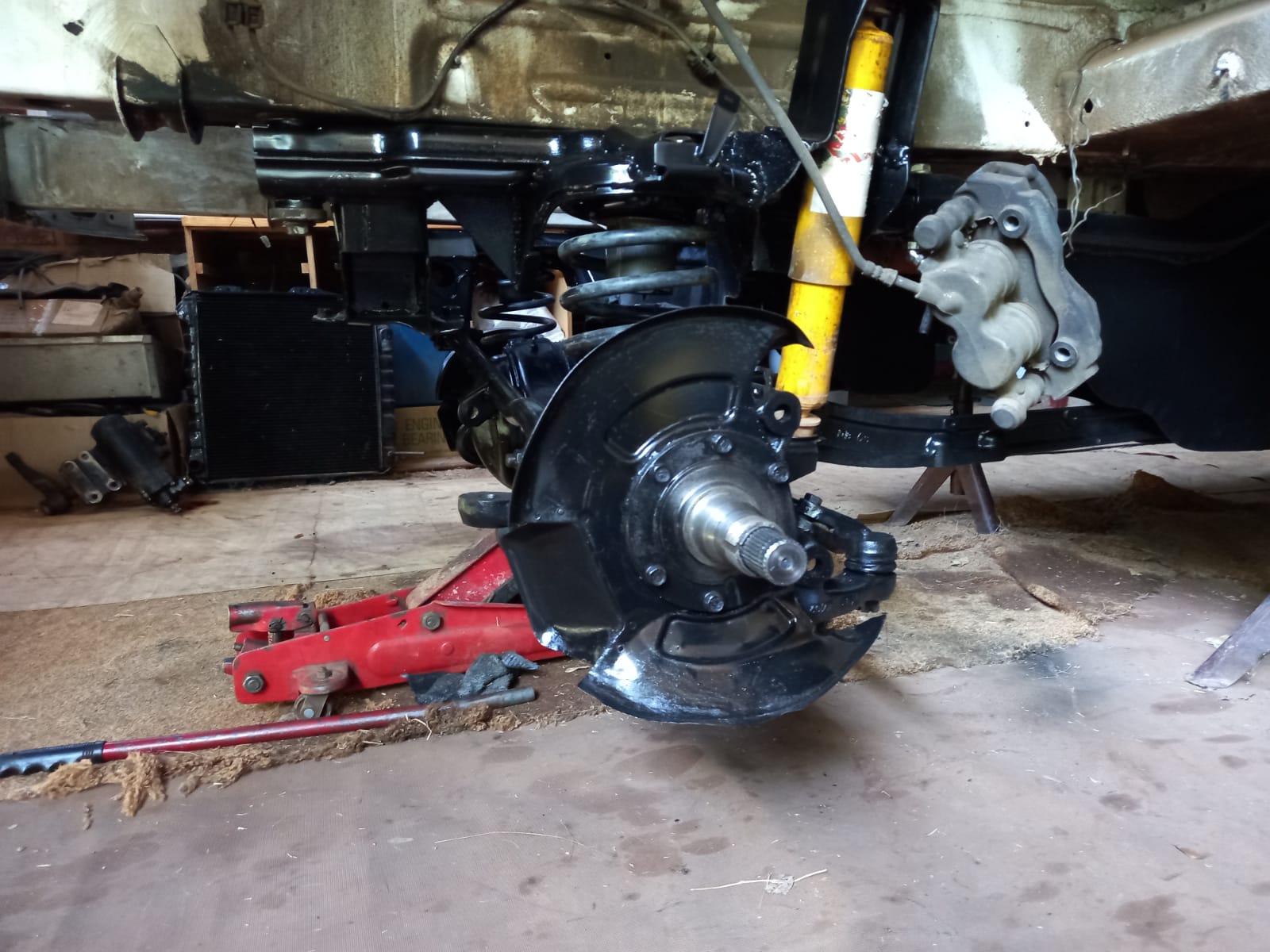

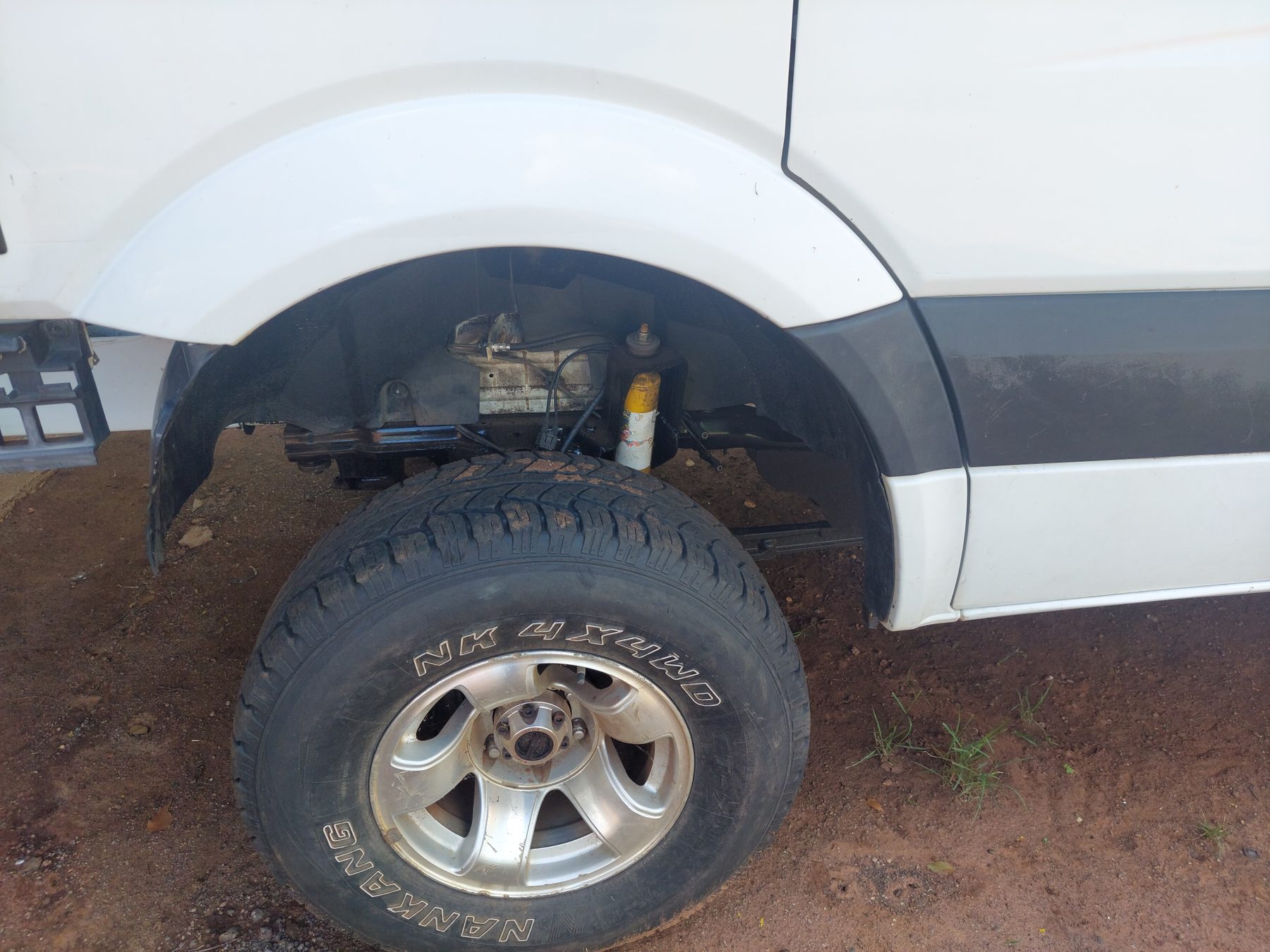

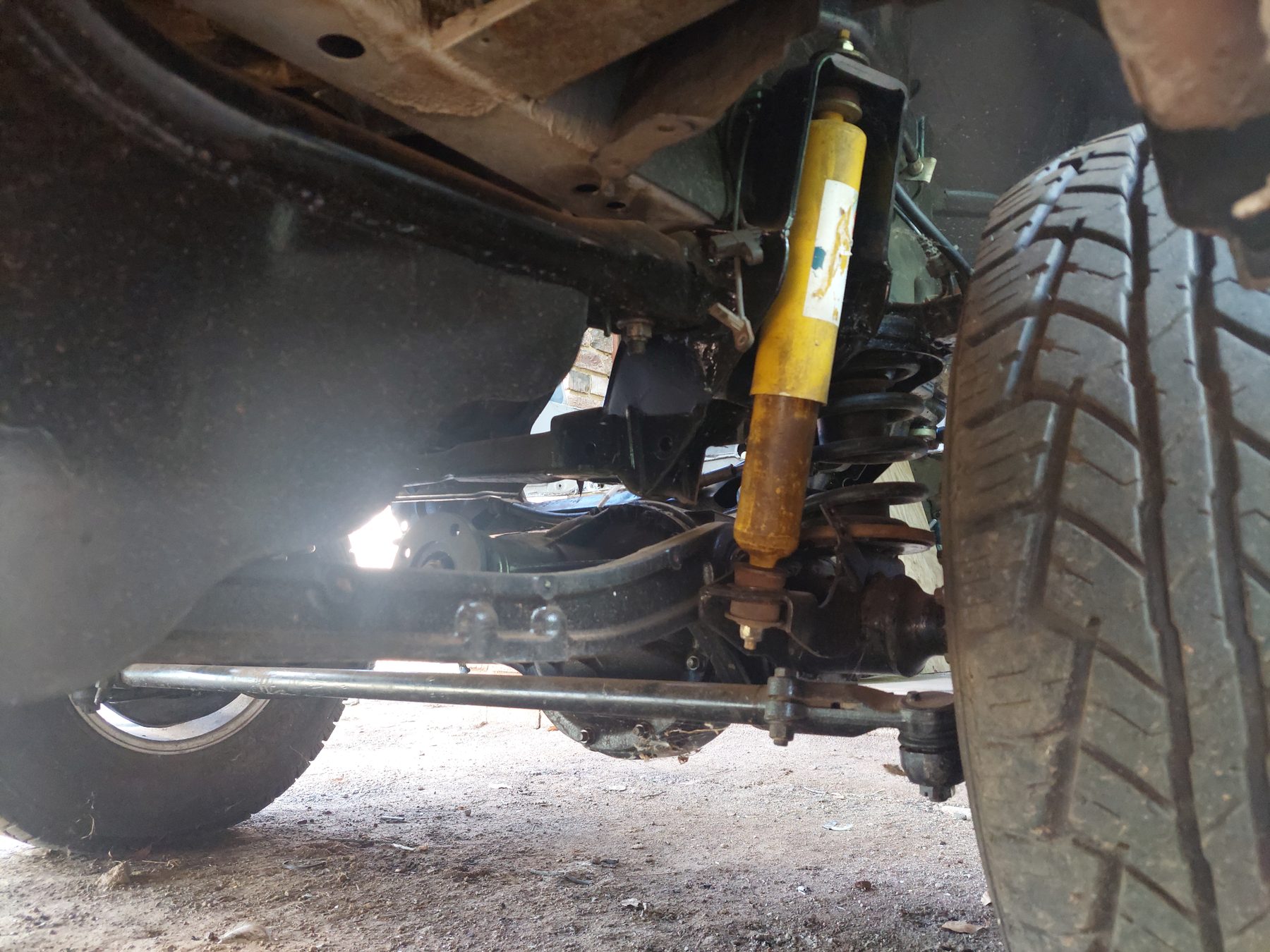

Suspension & Diff Fitted to Sprinter

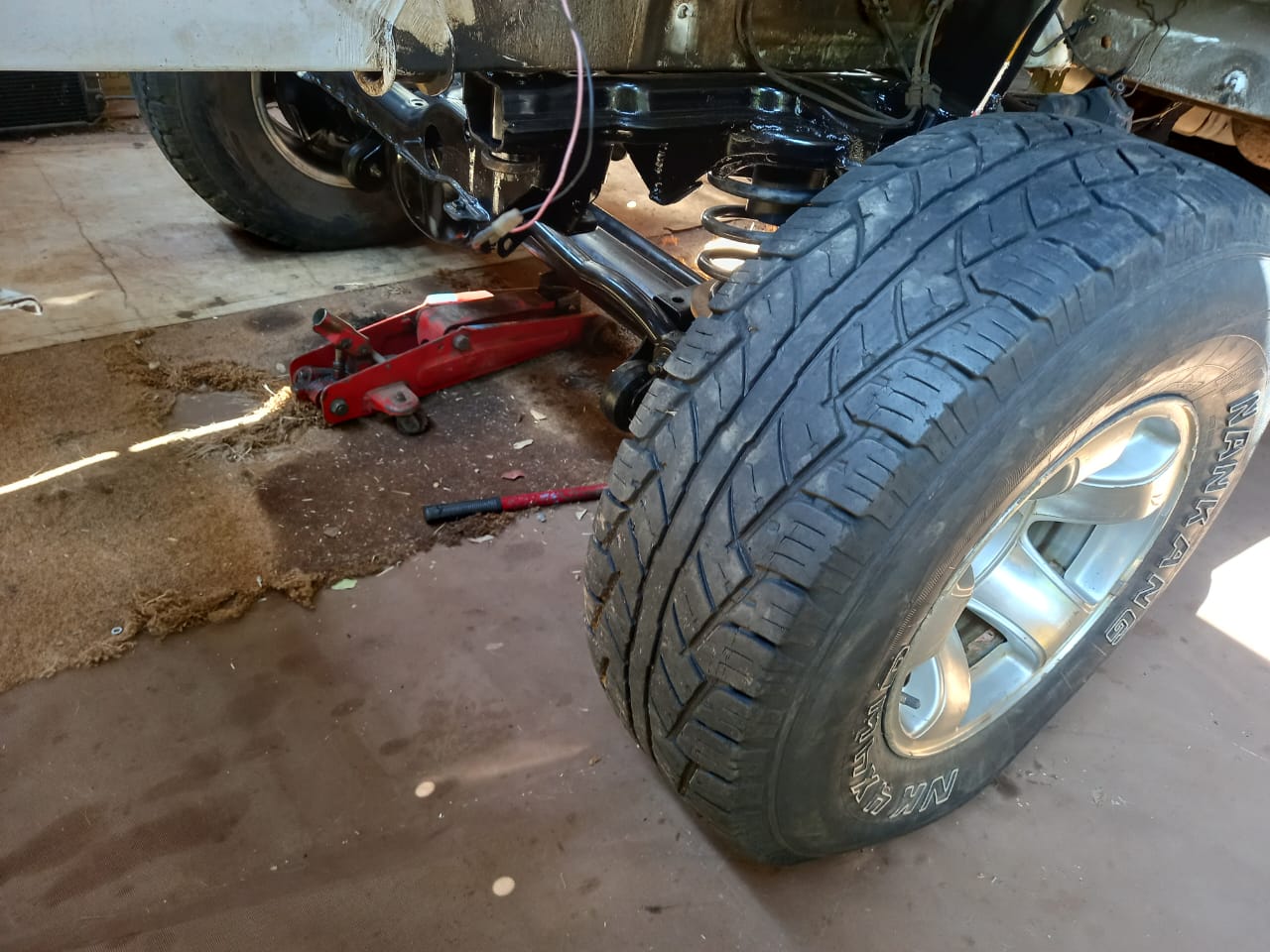

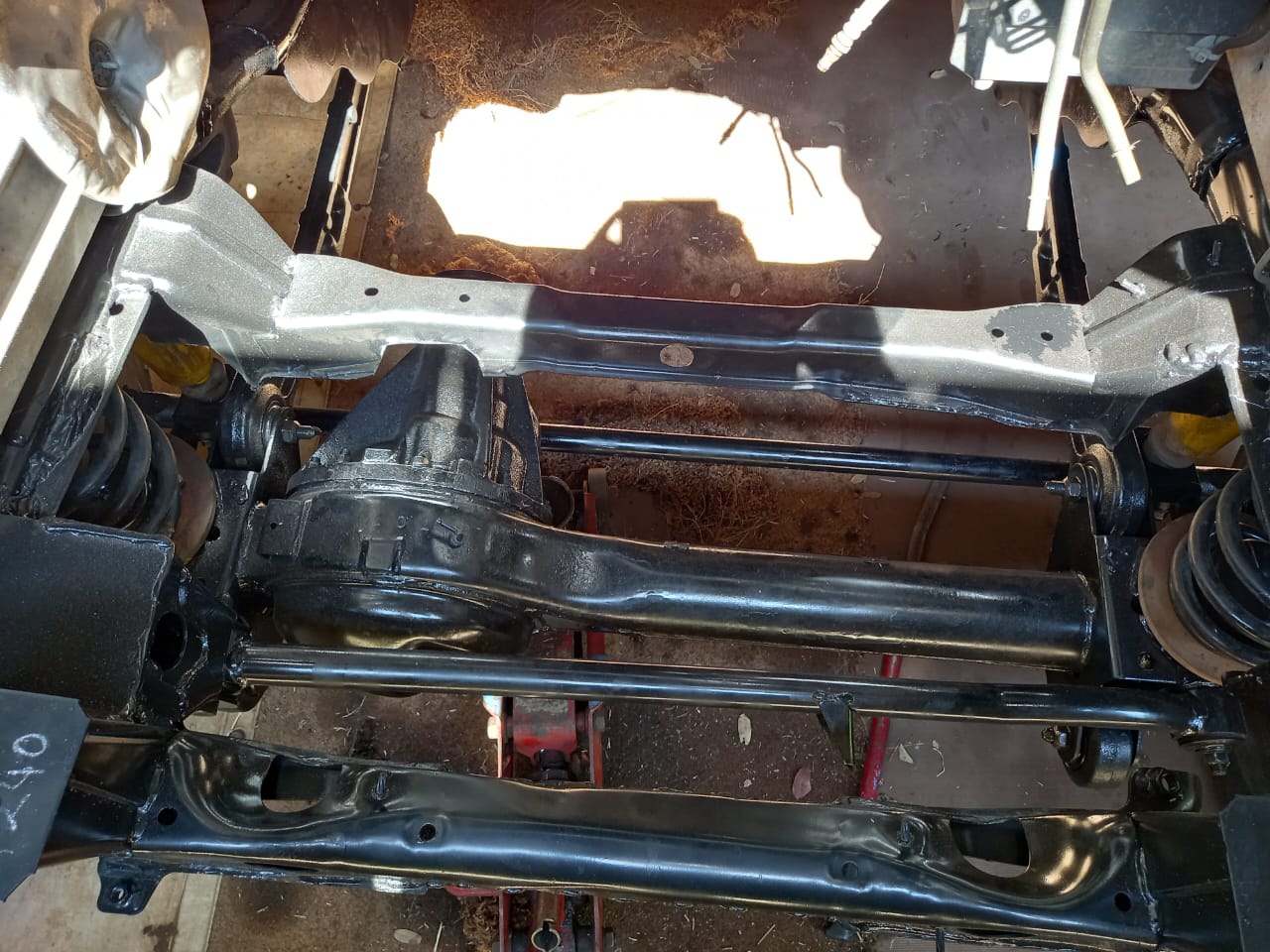

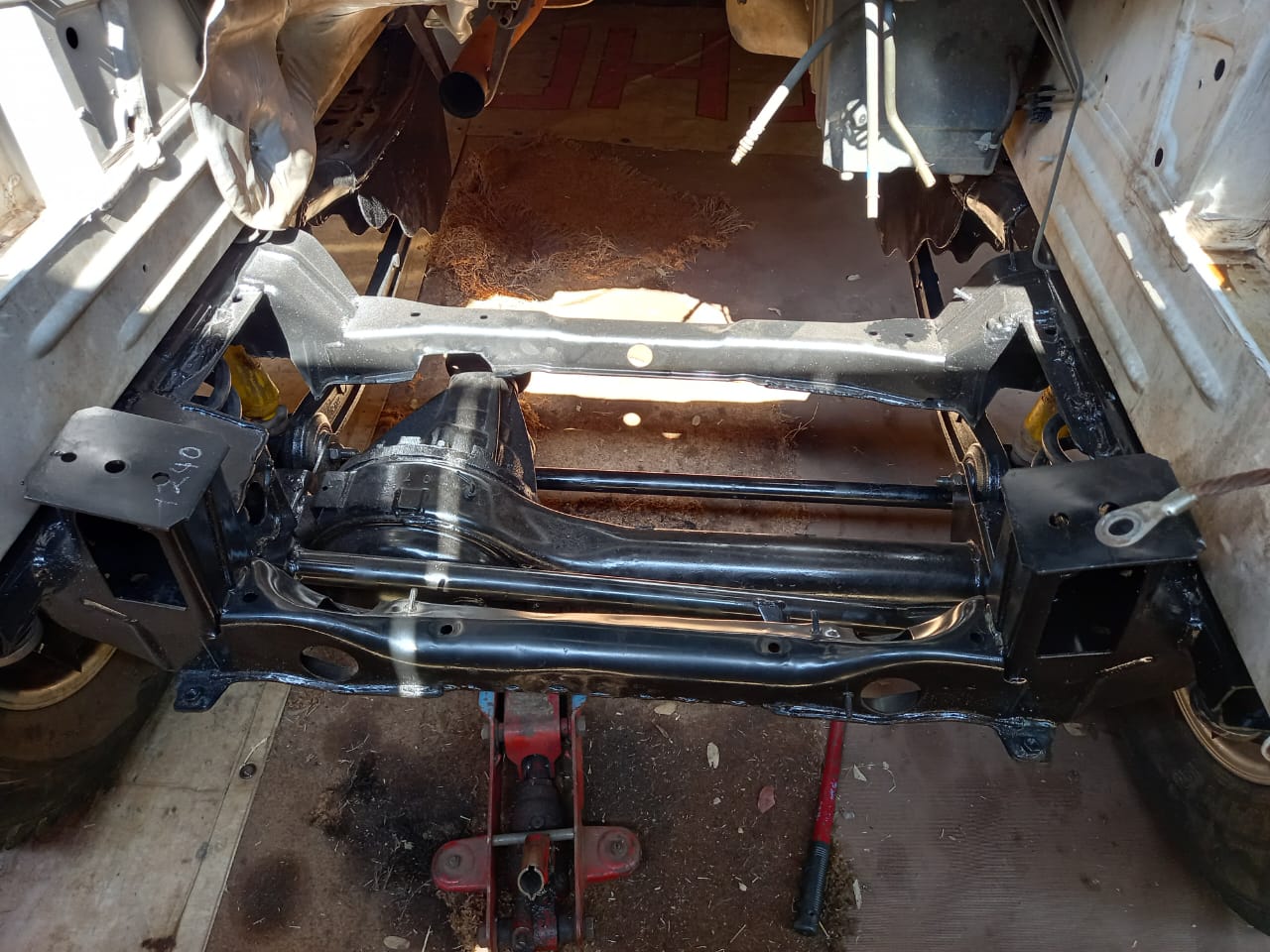

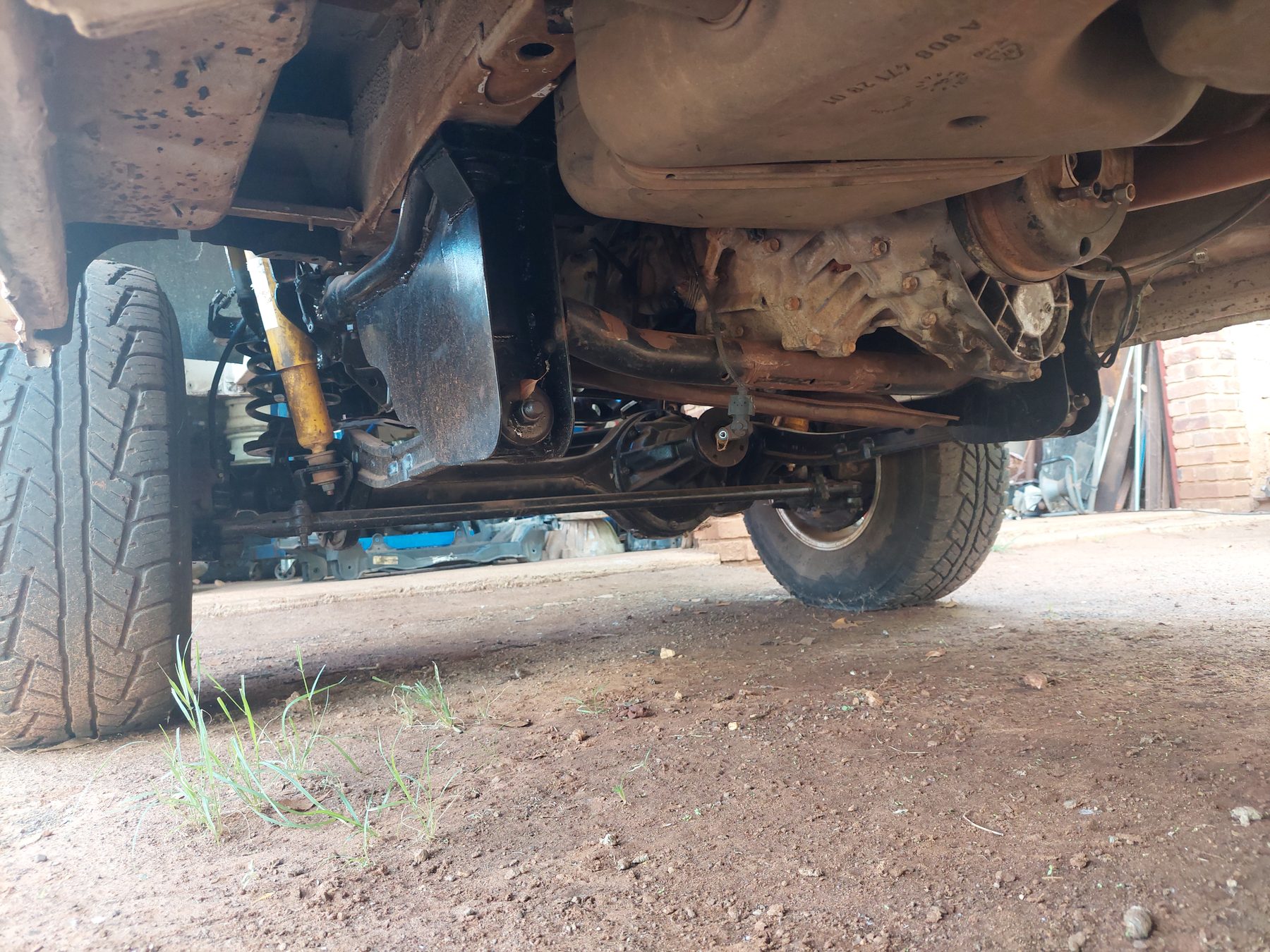

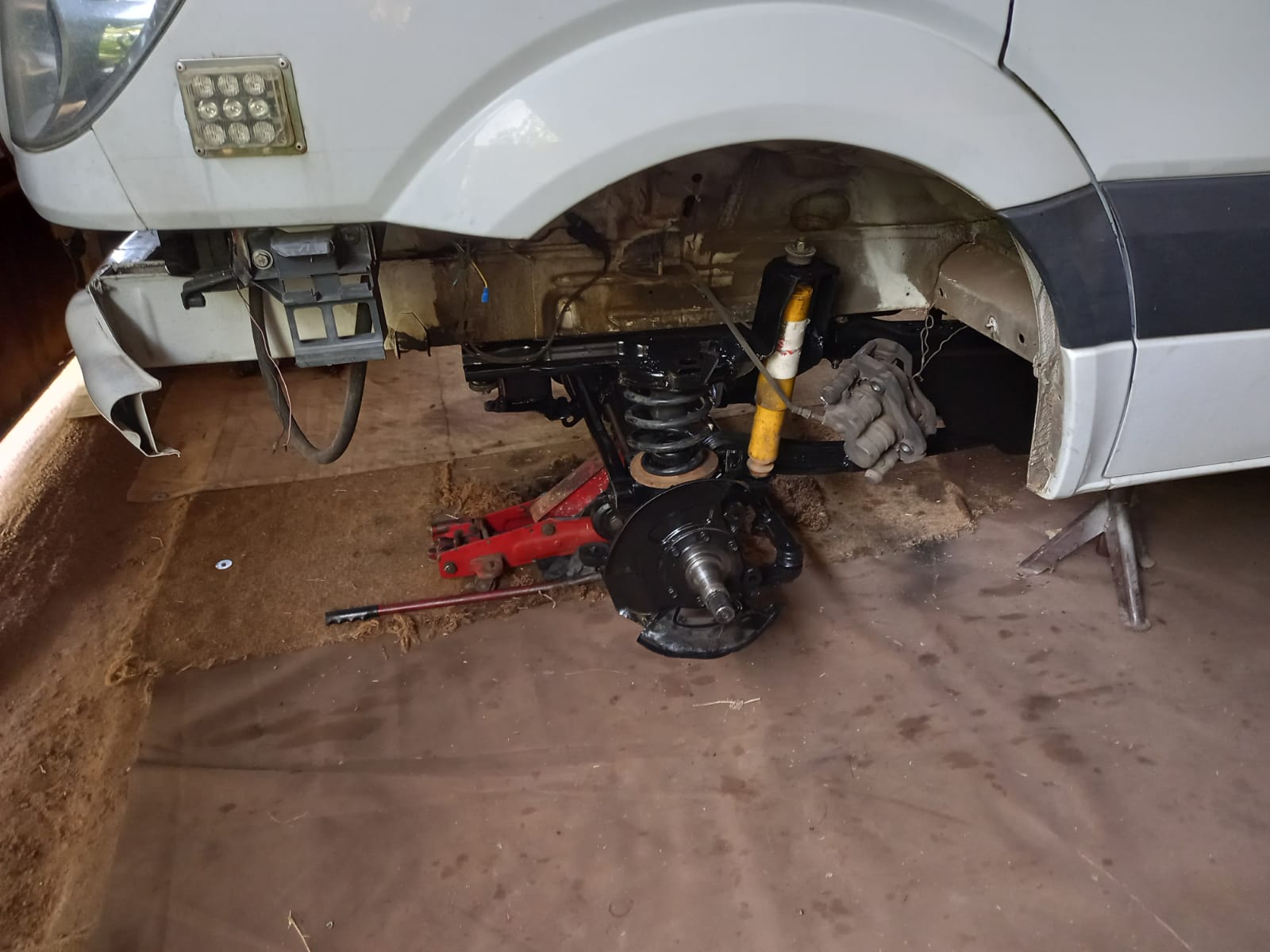

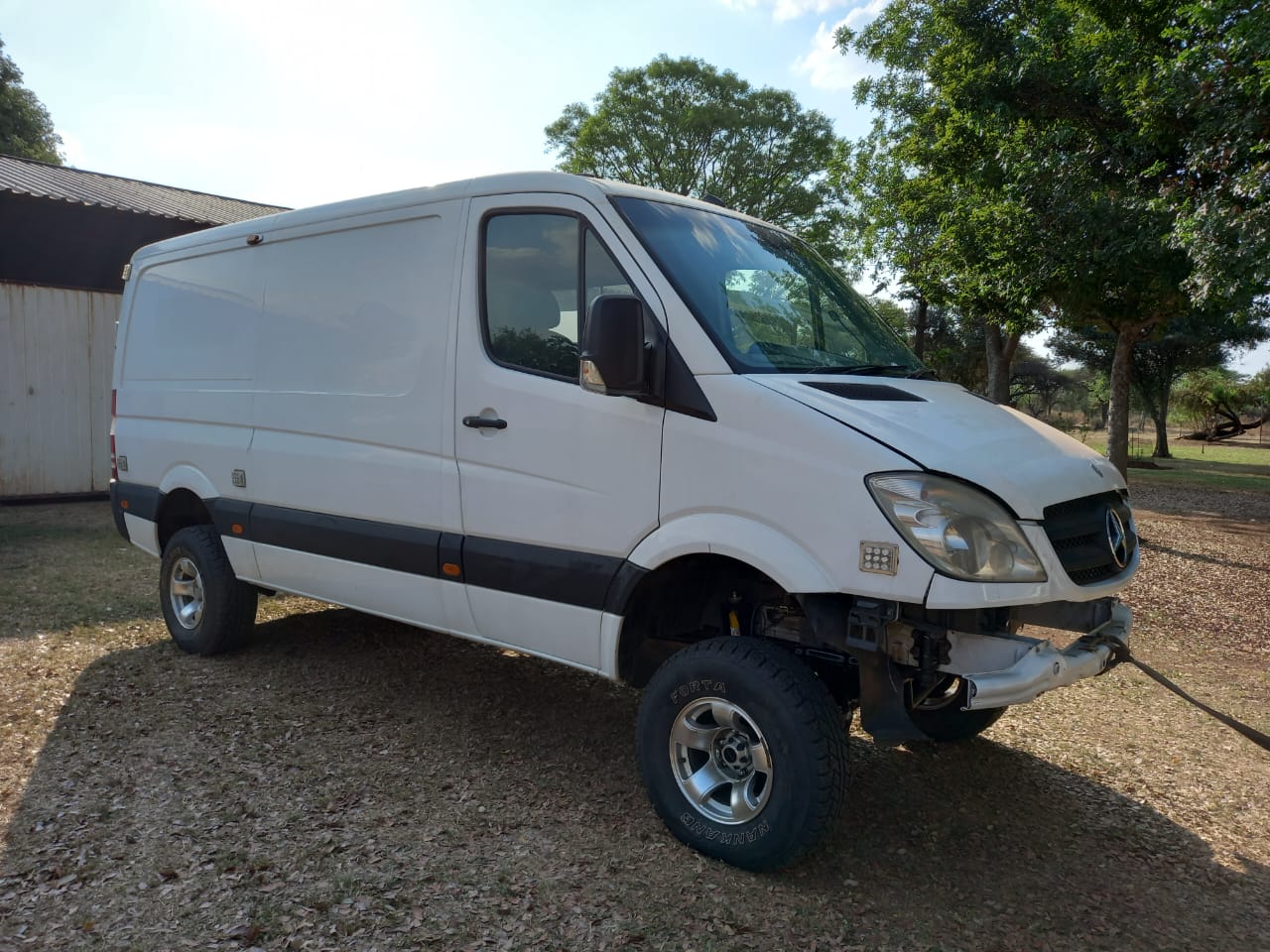

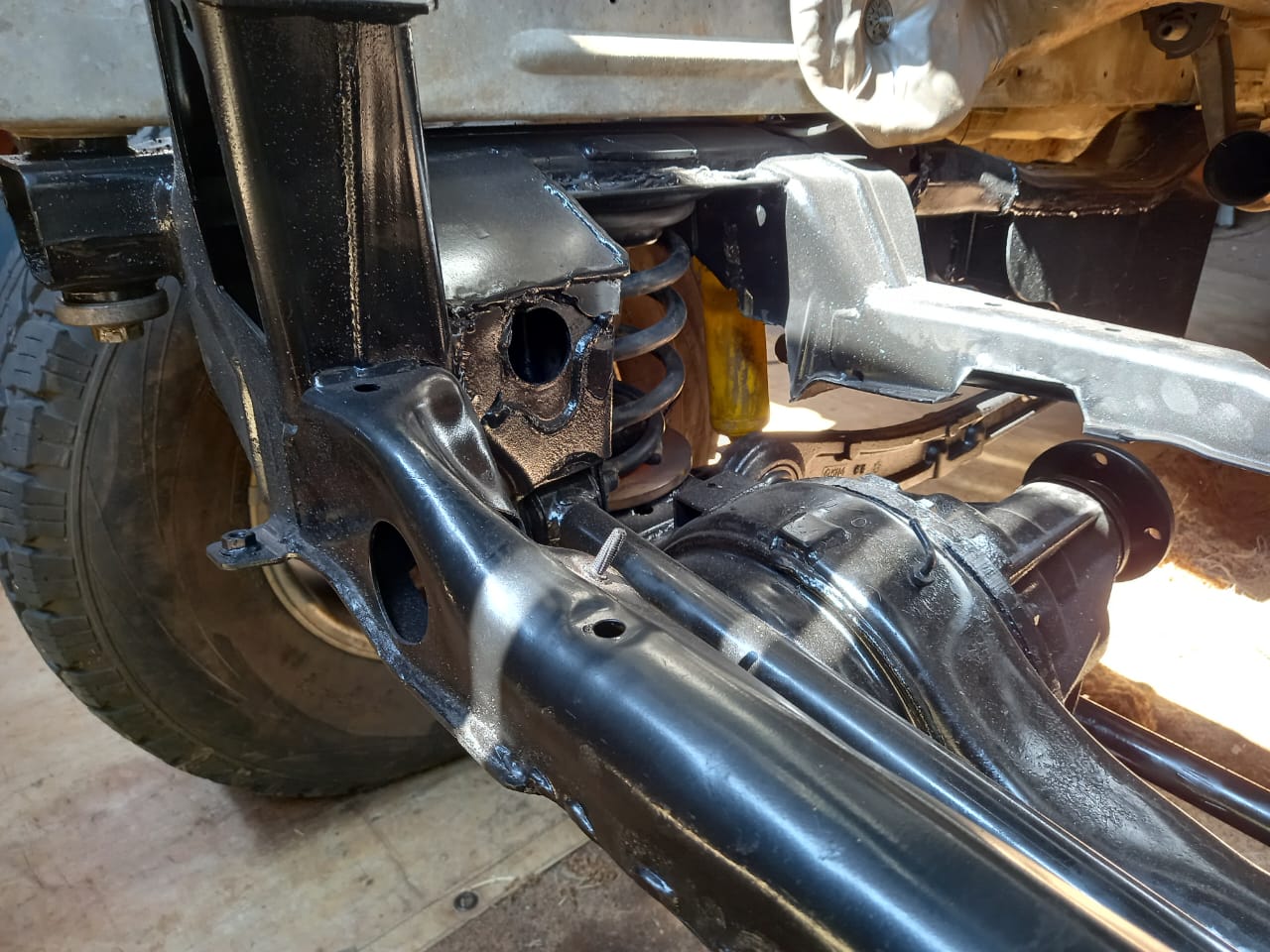

The finished subframe is fitted to the Sprinter's chassis, then the Patrol front differential, control arms, springs and shock absorbers are installed. The van takes its first steps toward 4x4 capability.

Part 7

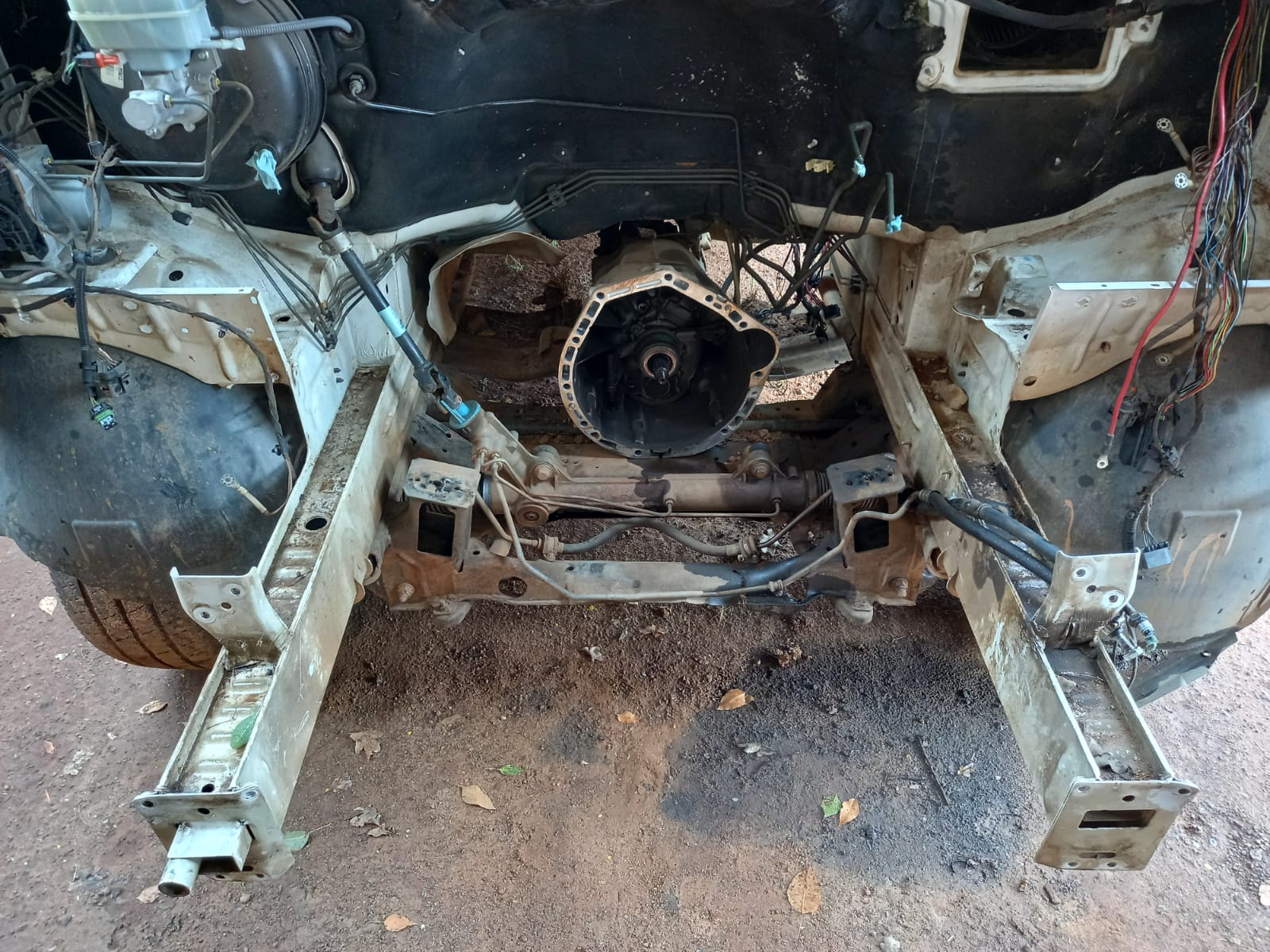

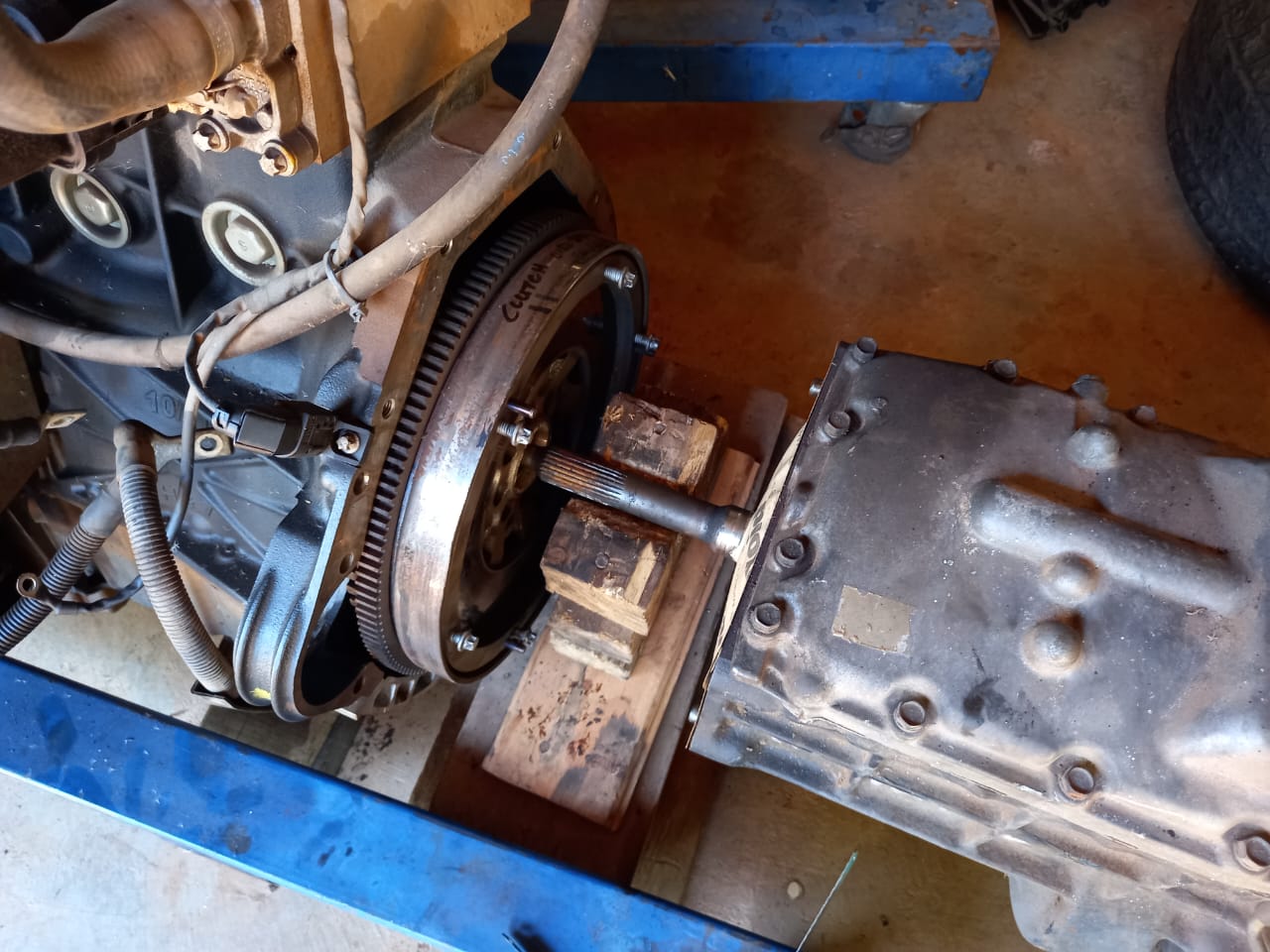

Mercedes OM646 → Nissan Patrol Gearbox

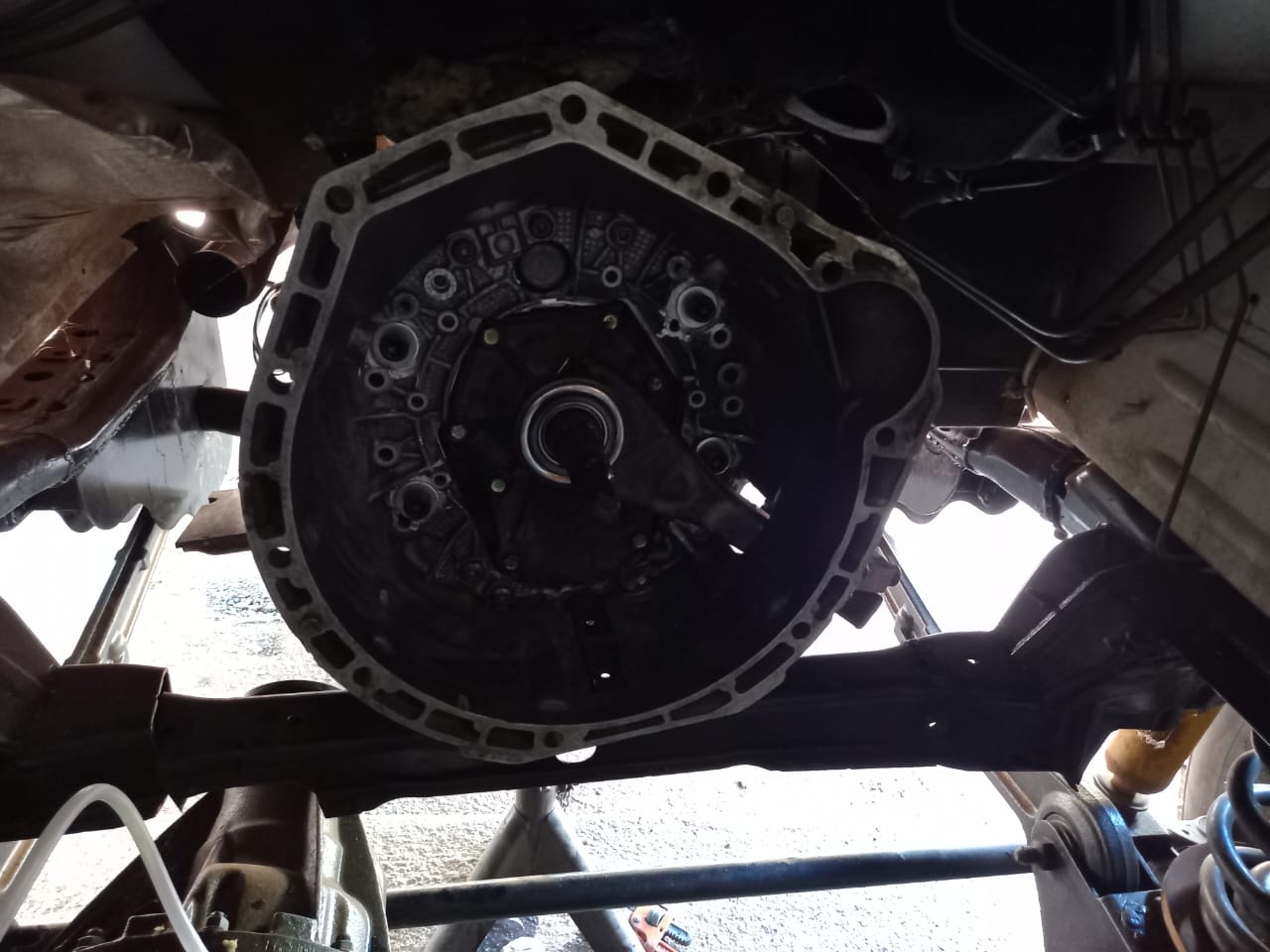

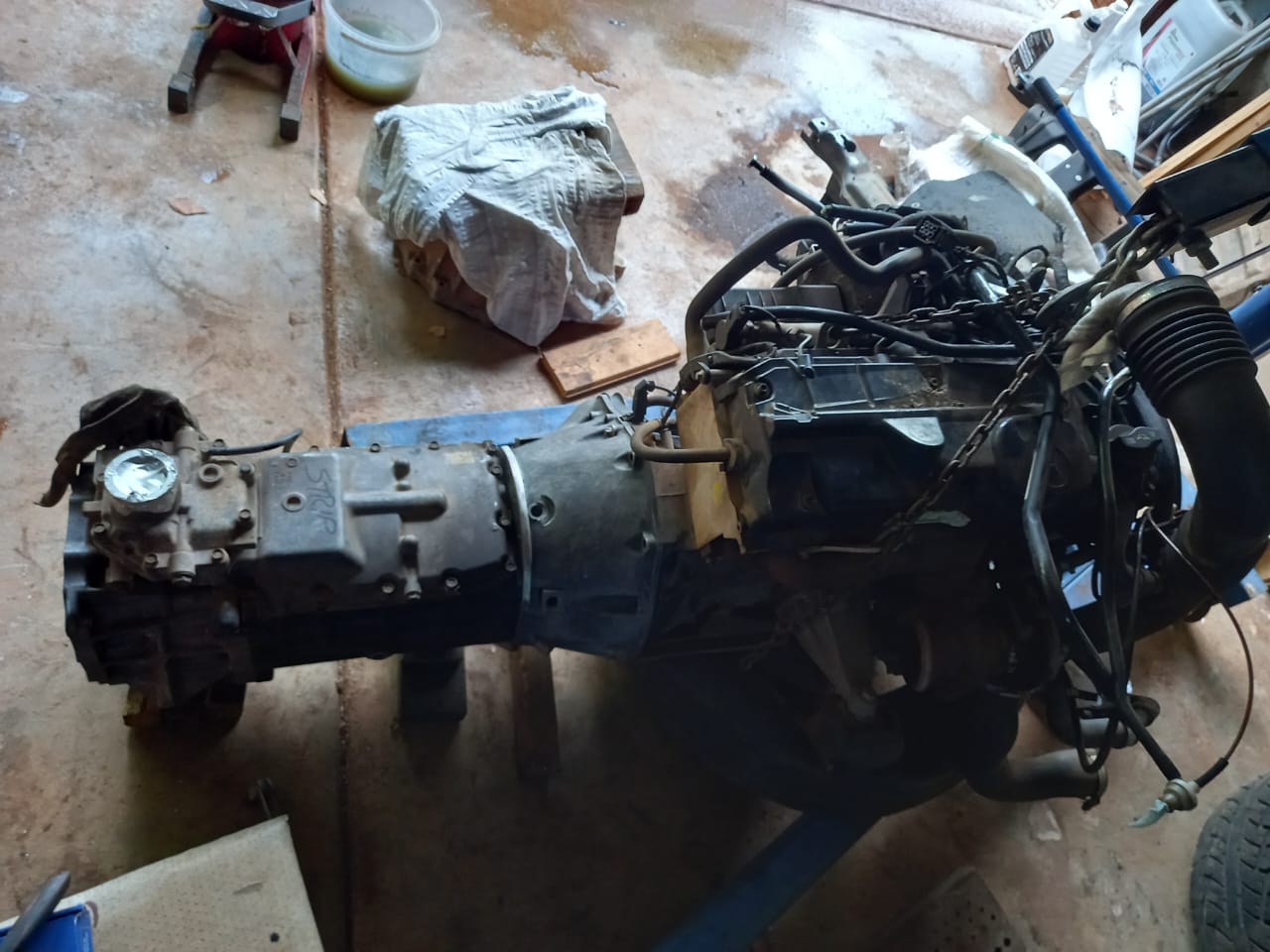

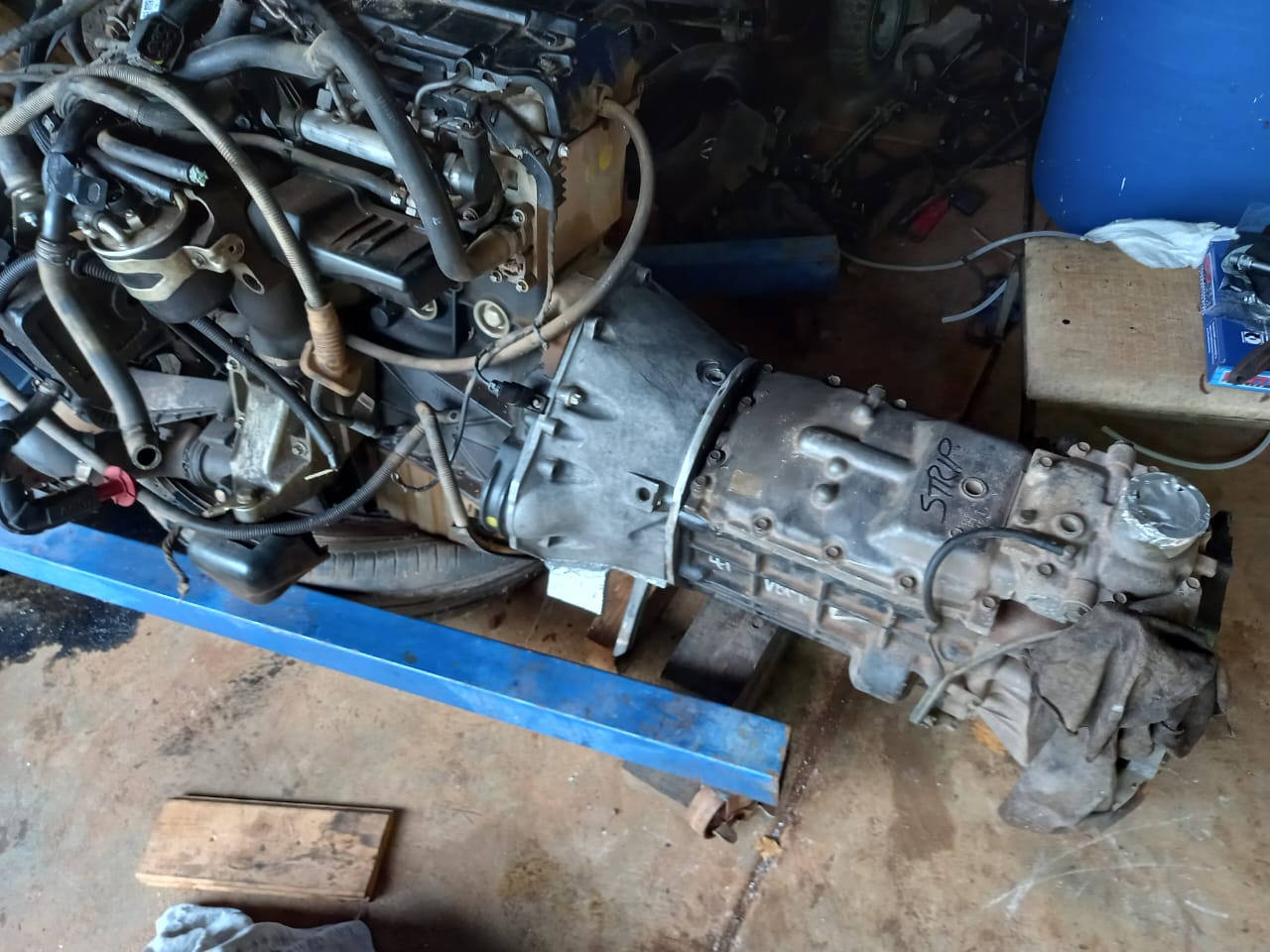

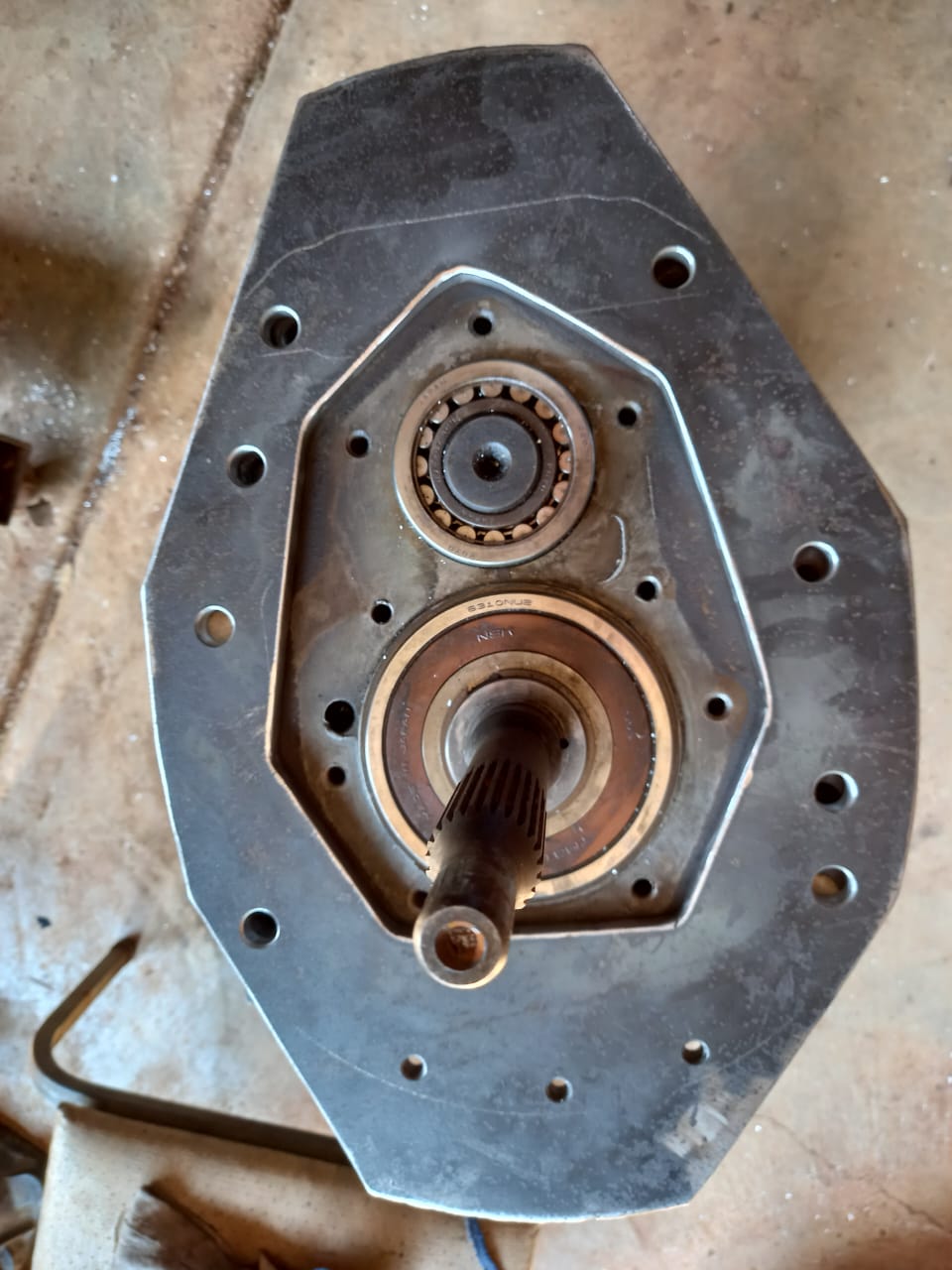

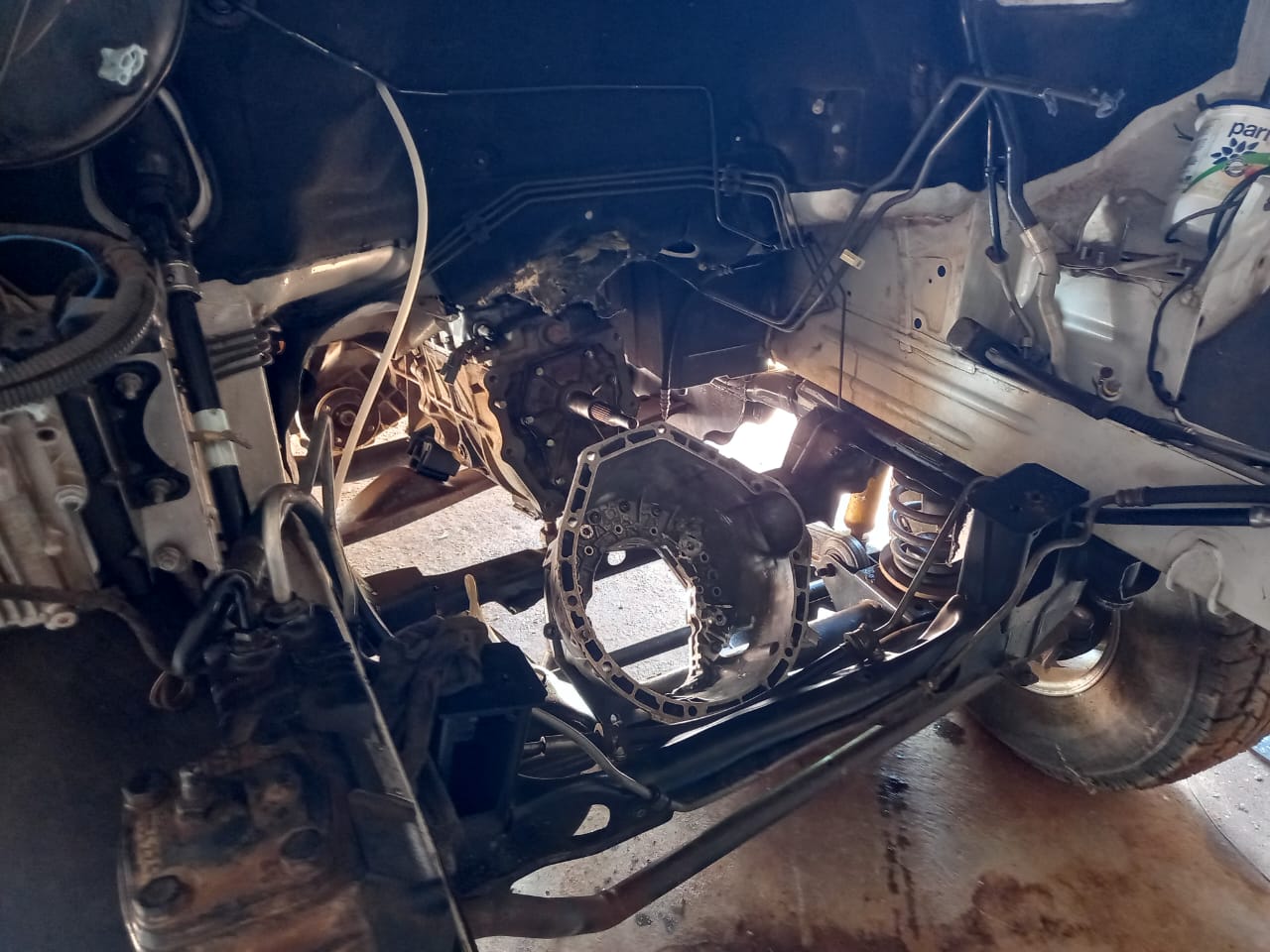

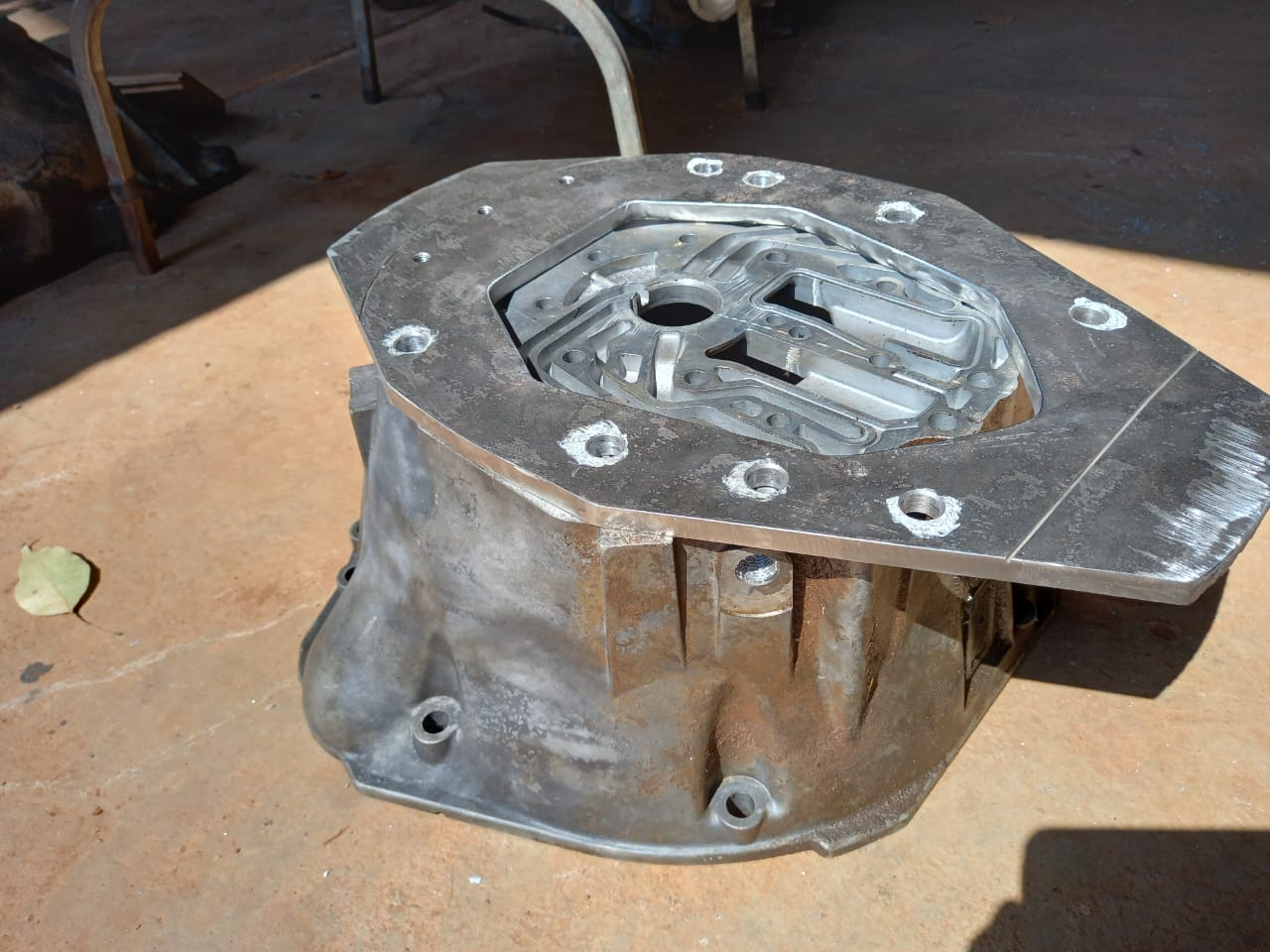

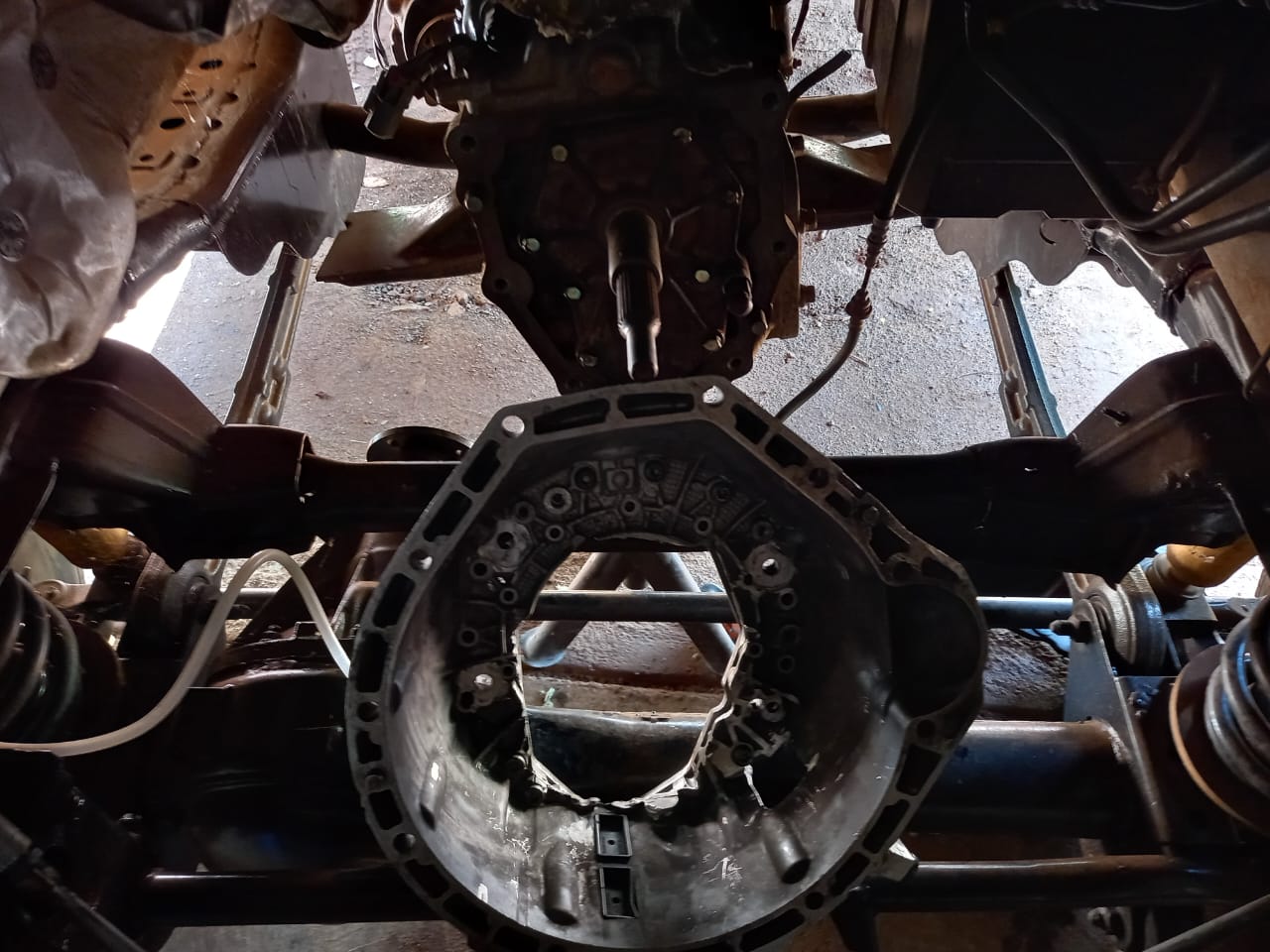

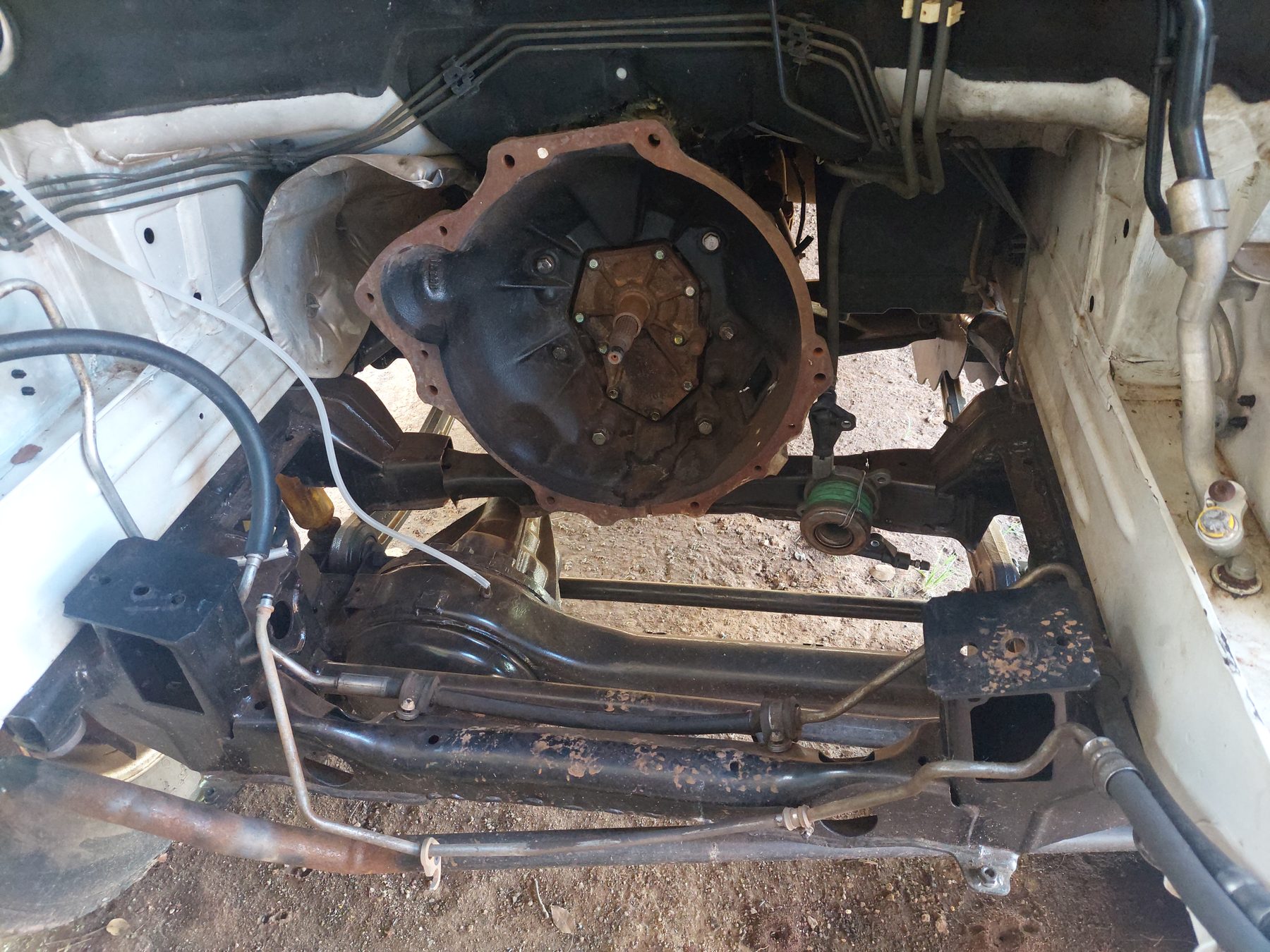

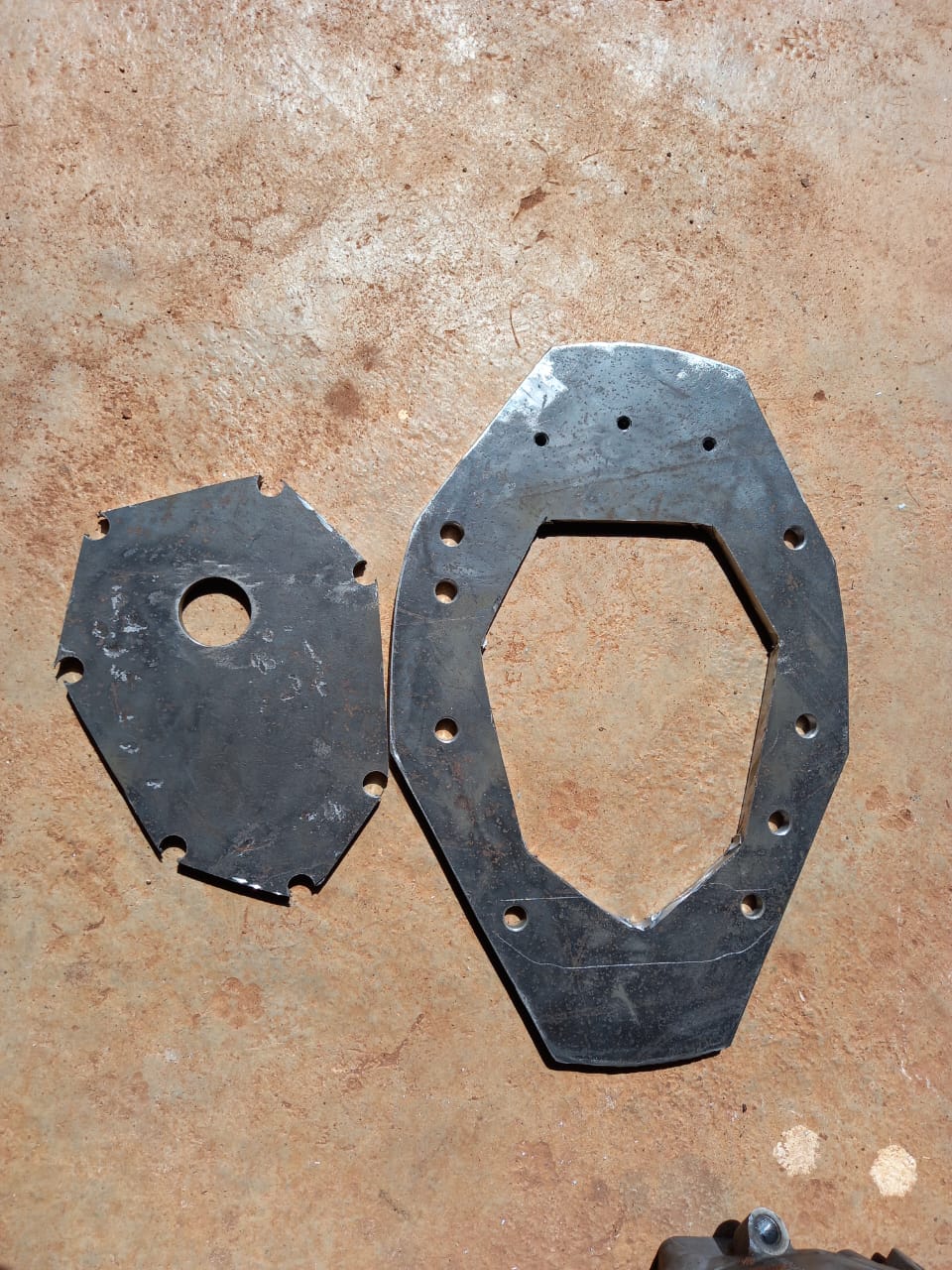

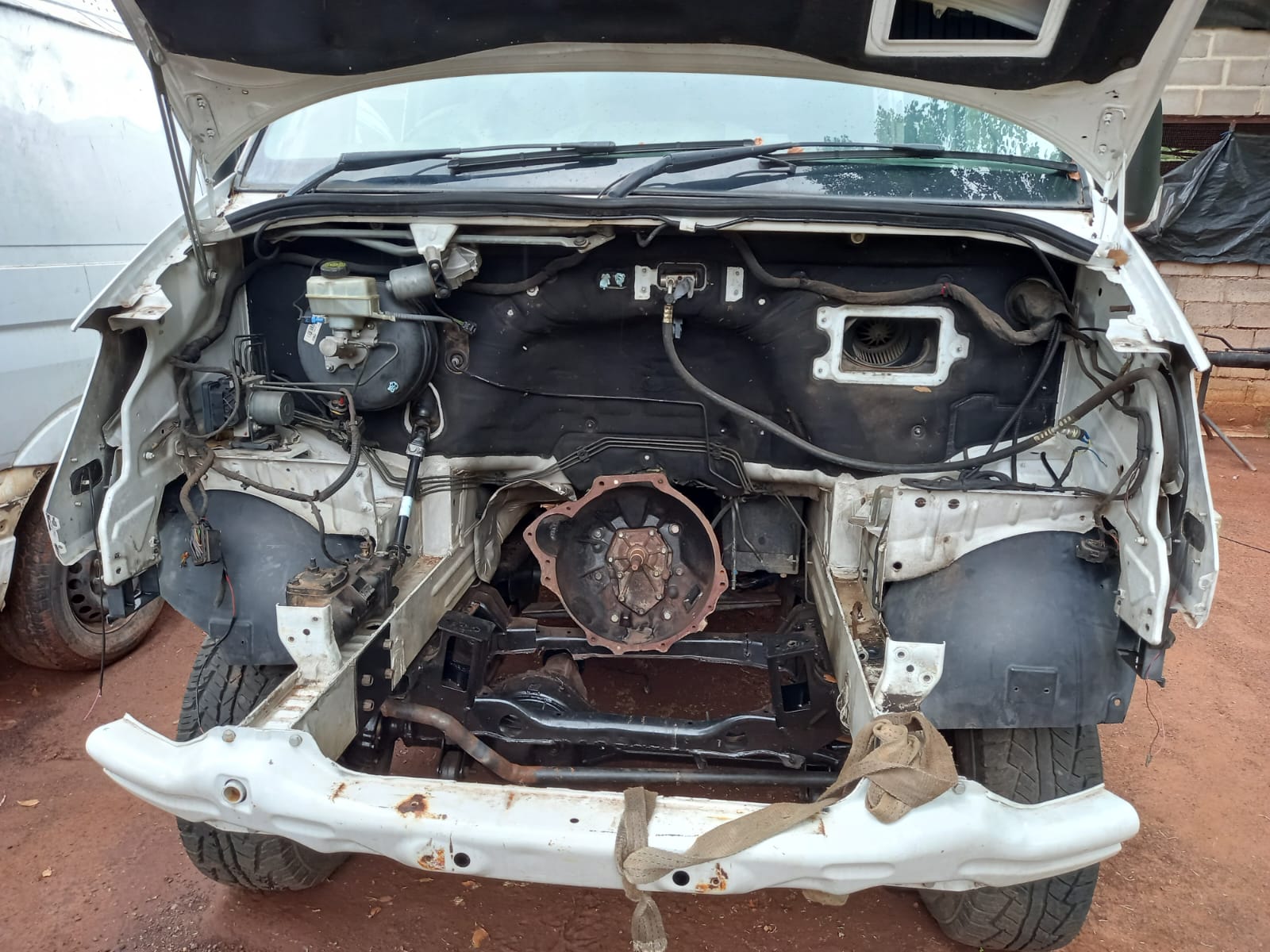

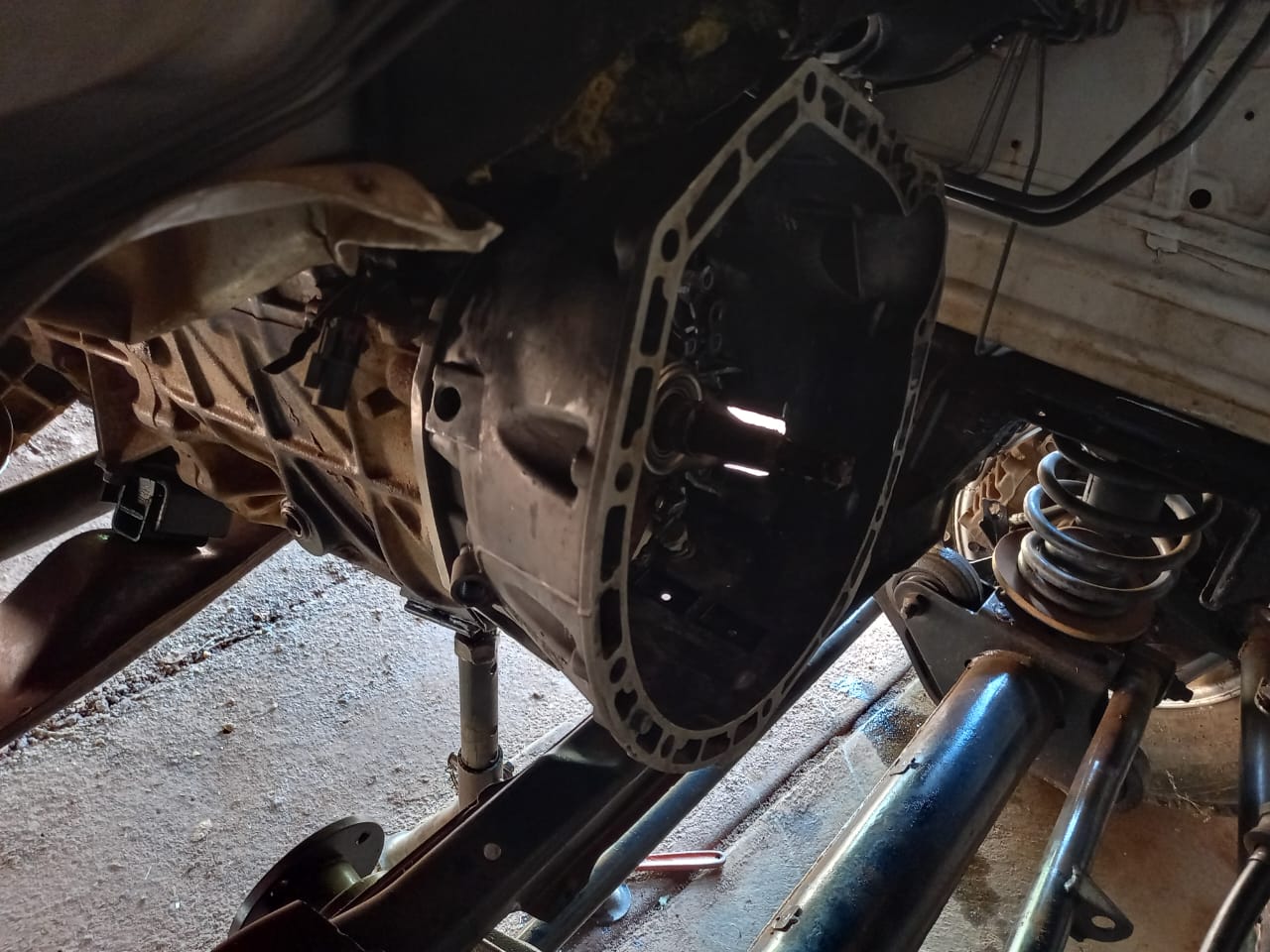

The critical heart of the conversion — a custom adapter plate mates the Sprinter's OM646 2.2L diesel engine directly to the Nissan Patrol's manual gearbox and transfer case. No off-the-shelf solution exists for this combination; the adapter is designed and machined in-house.

Part 8

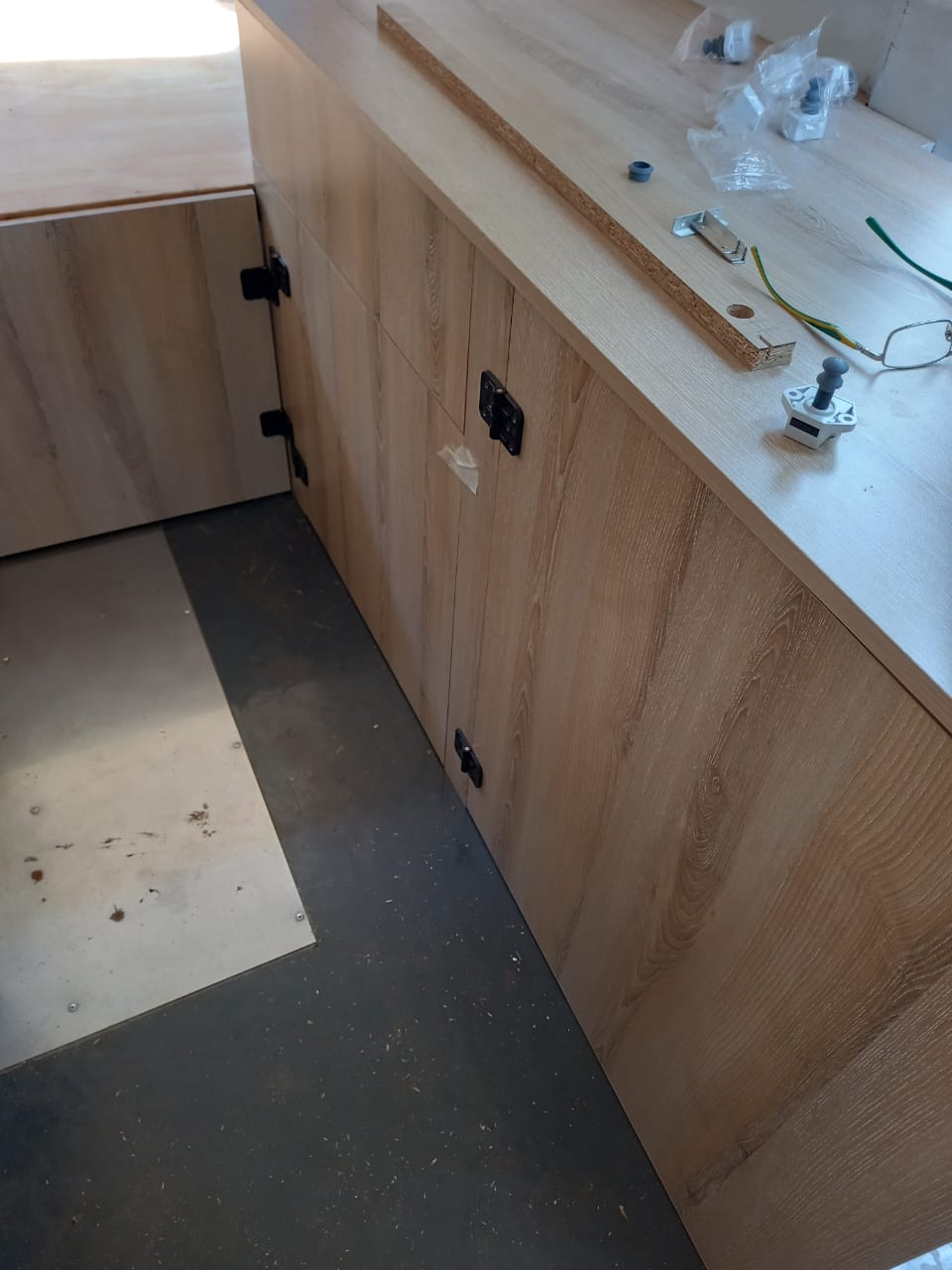

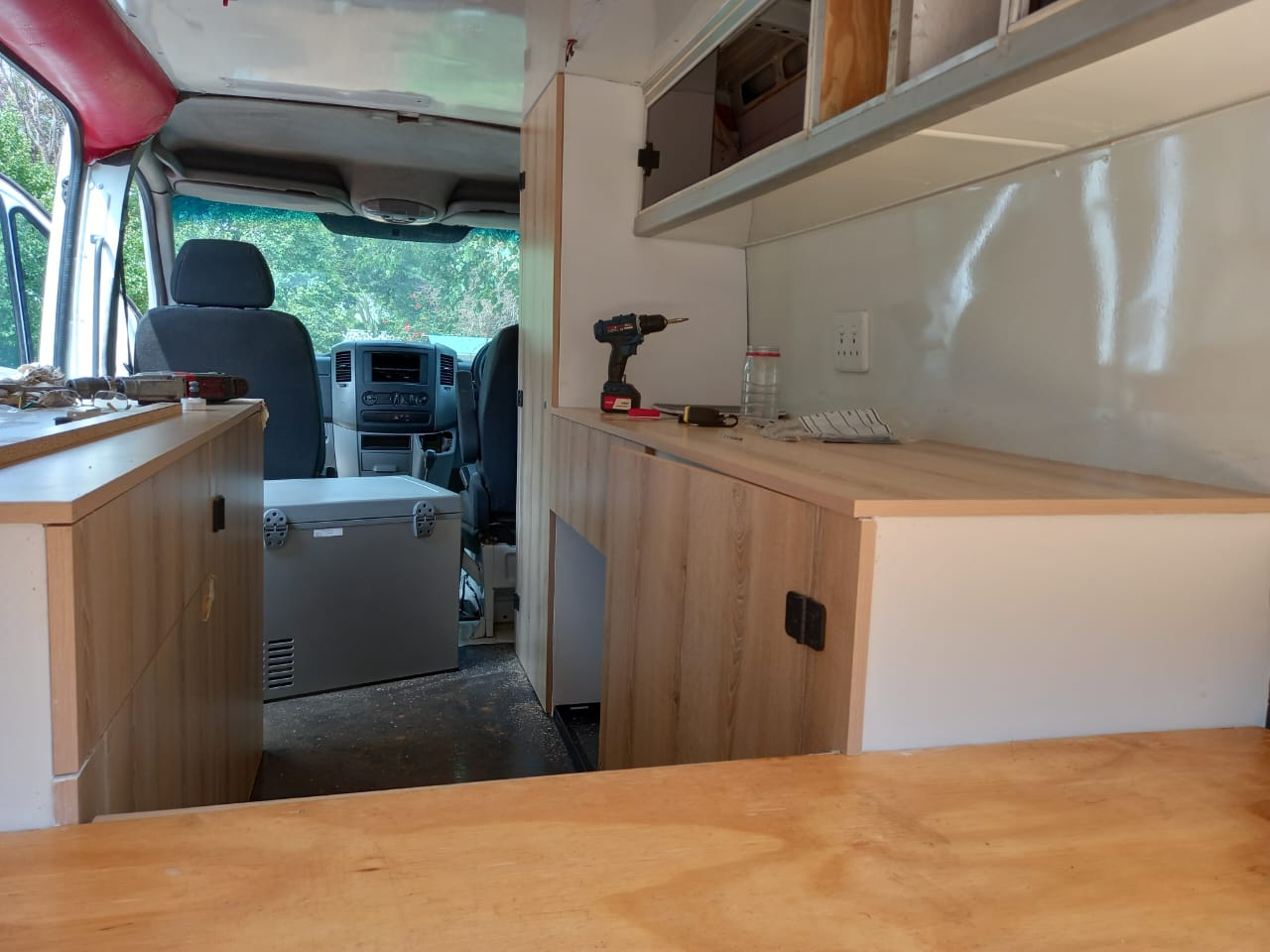

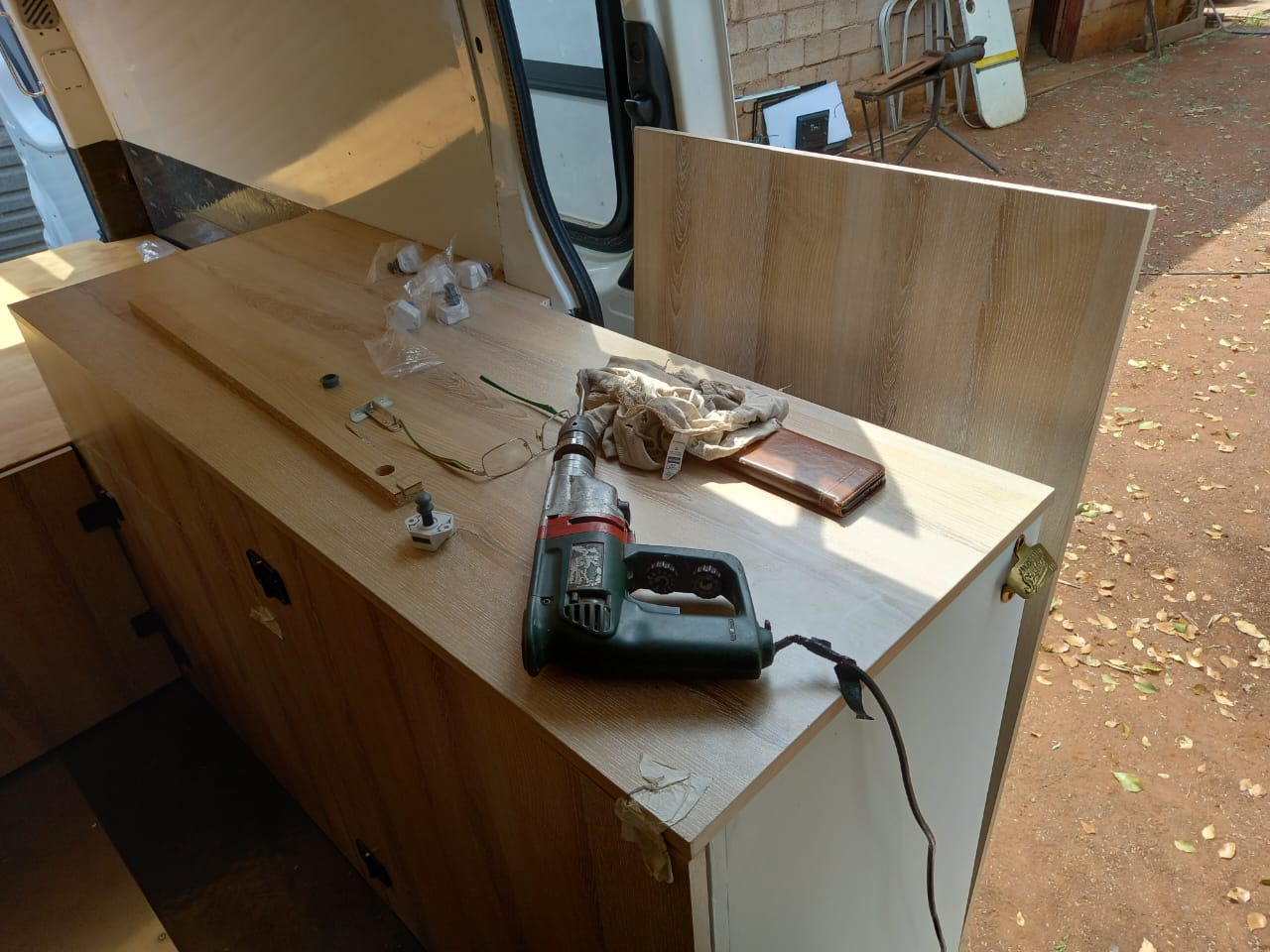

Interior Build

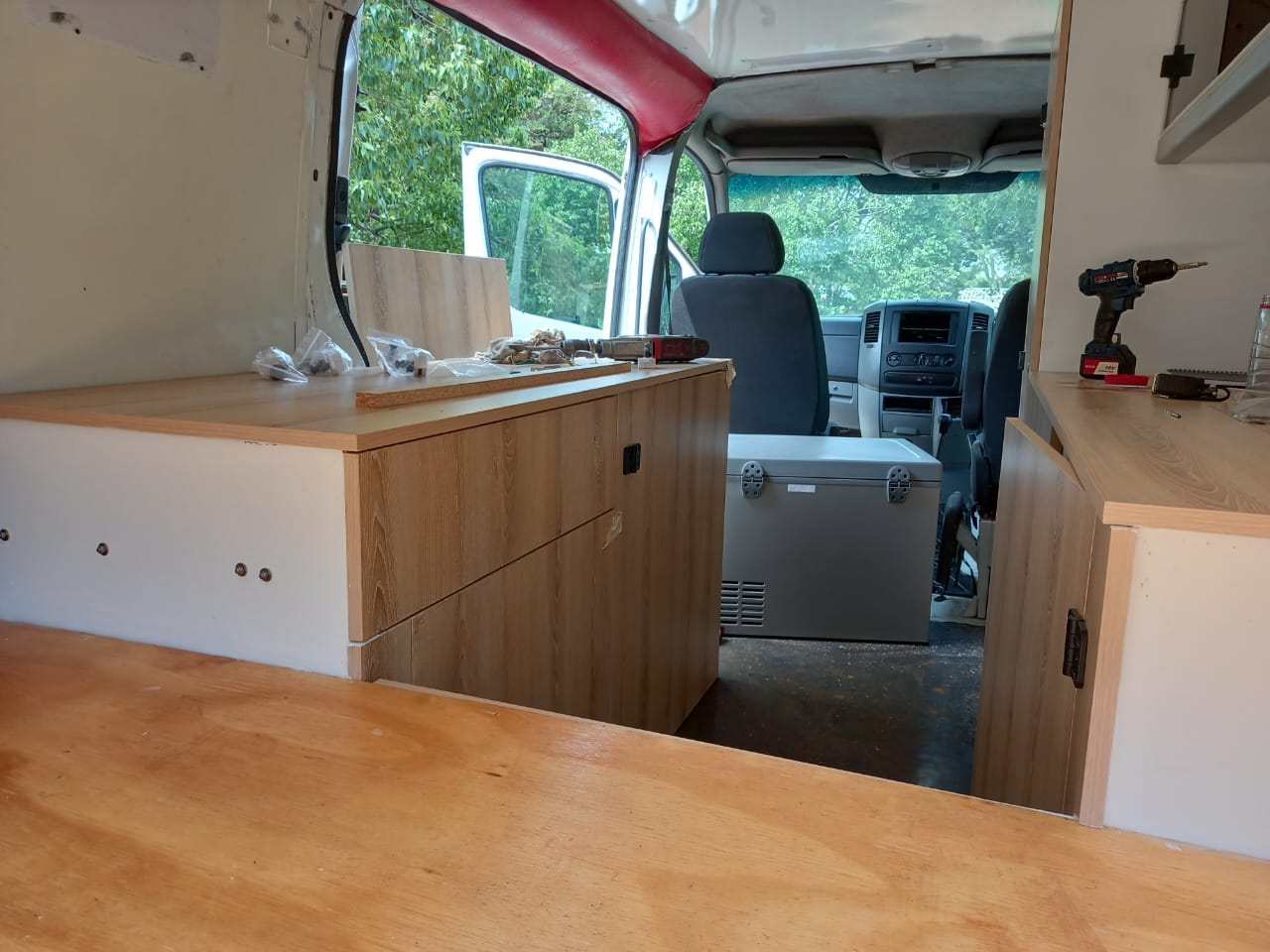

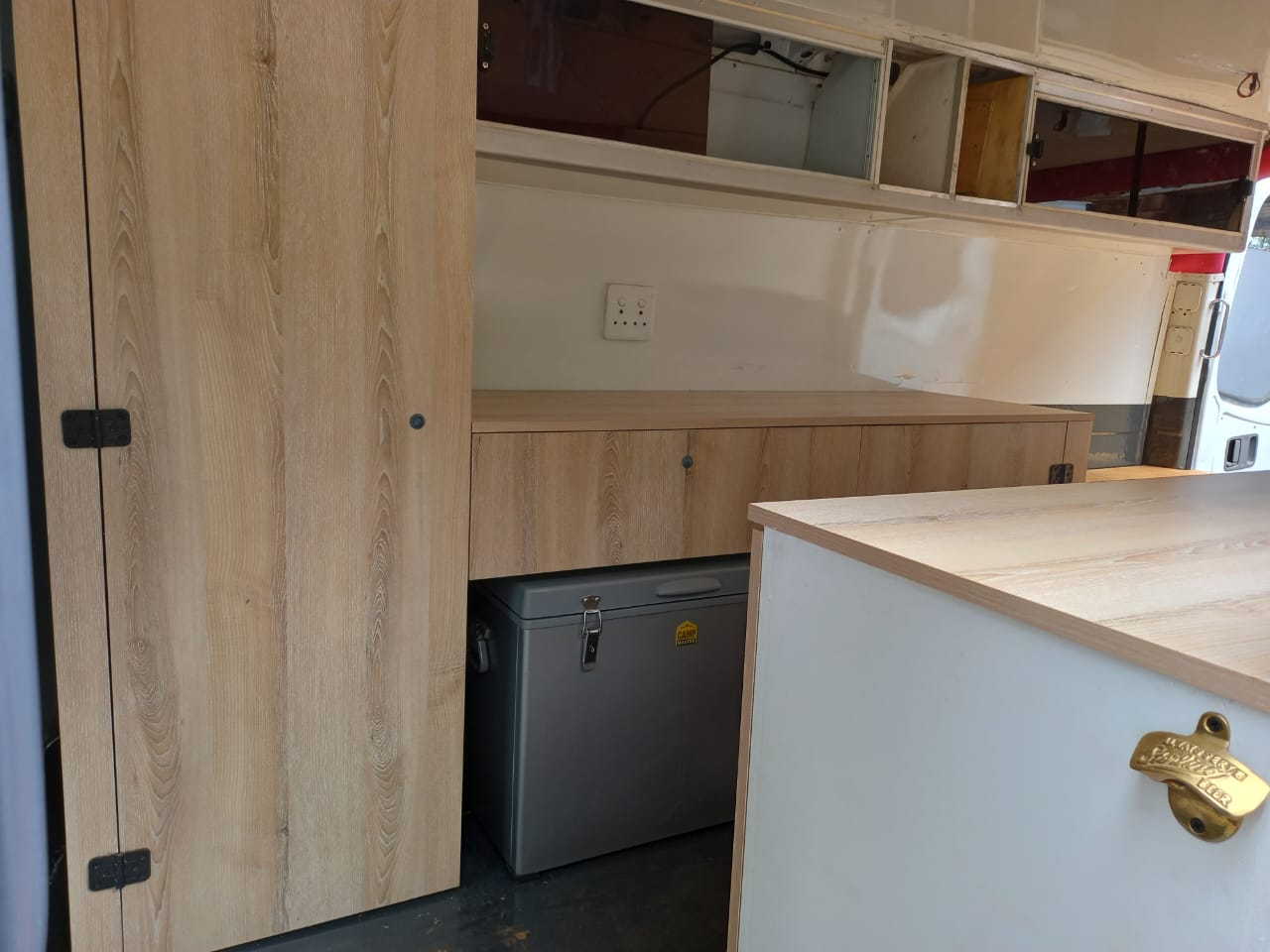

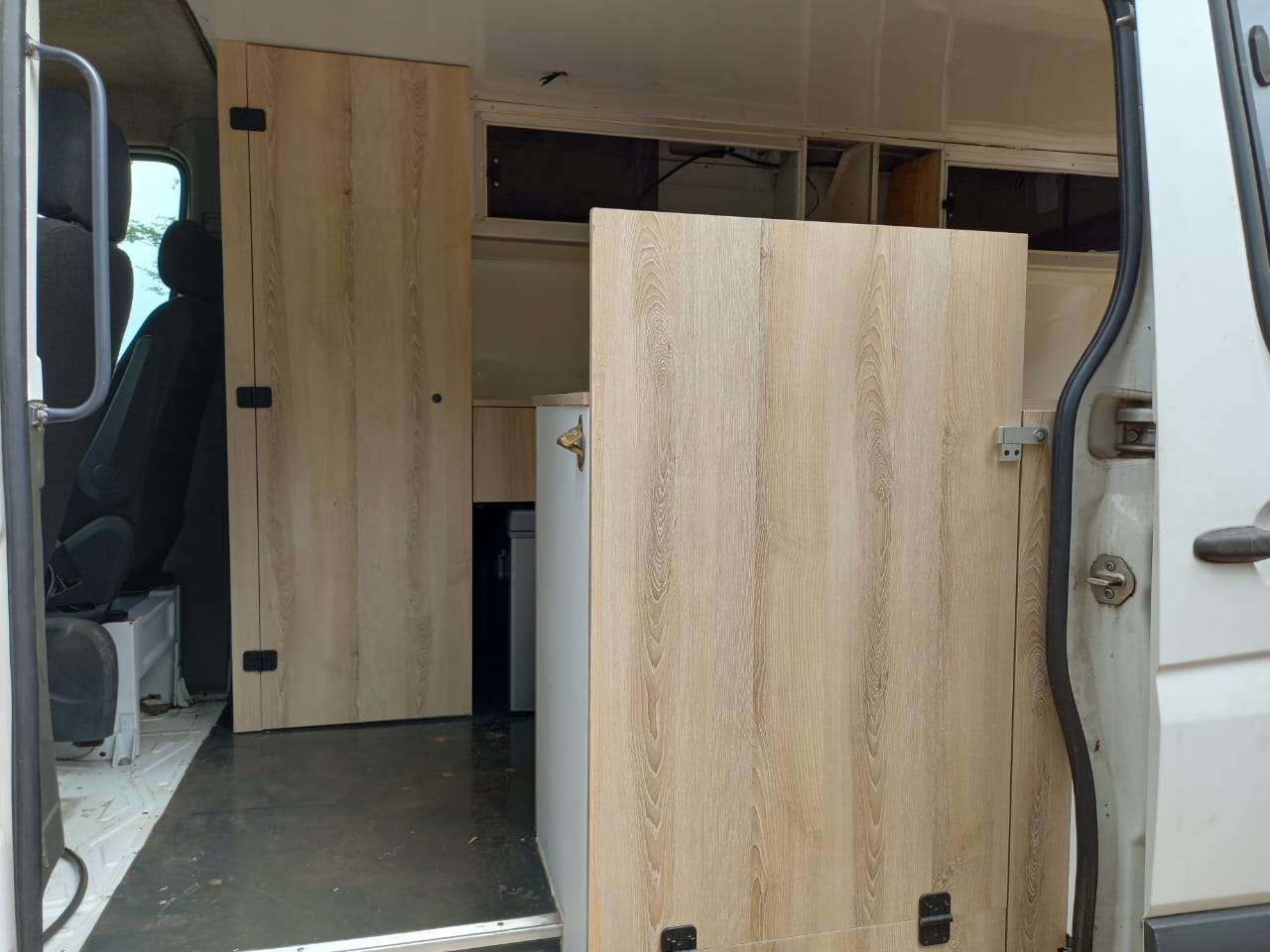

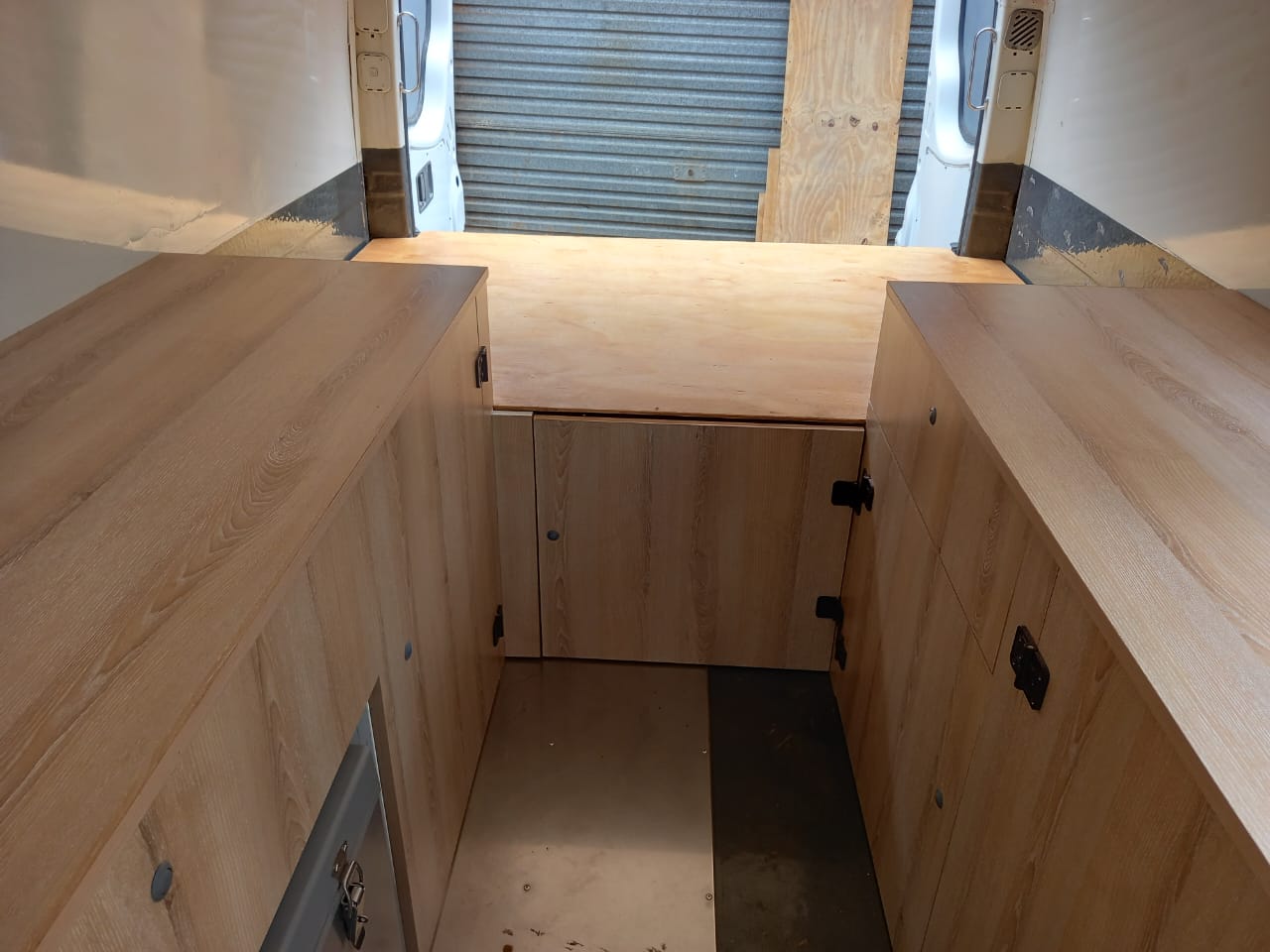

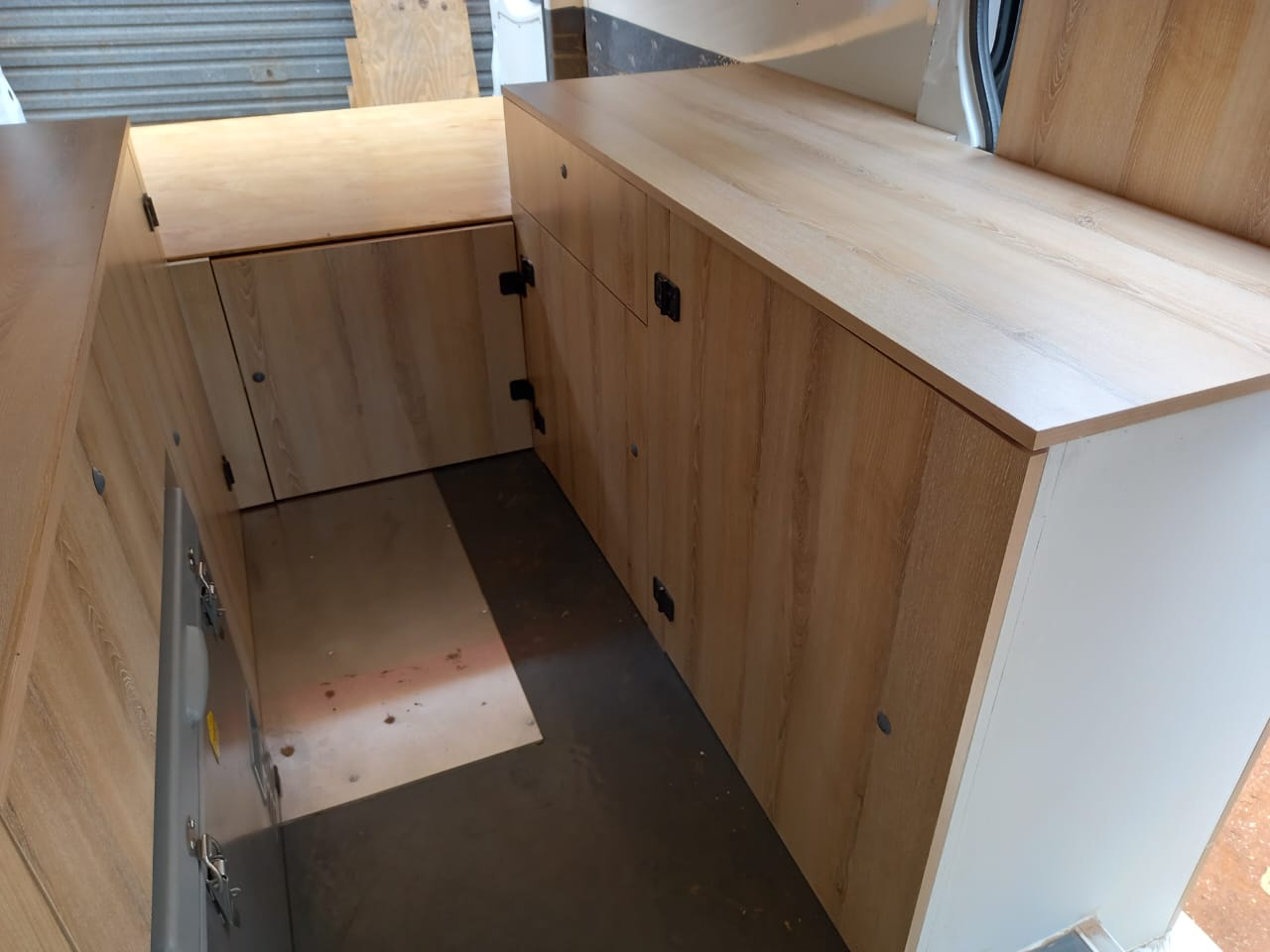

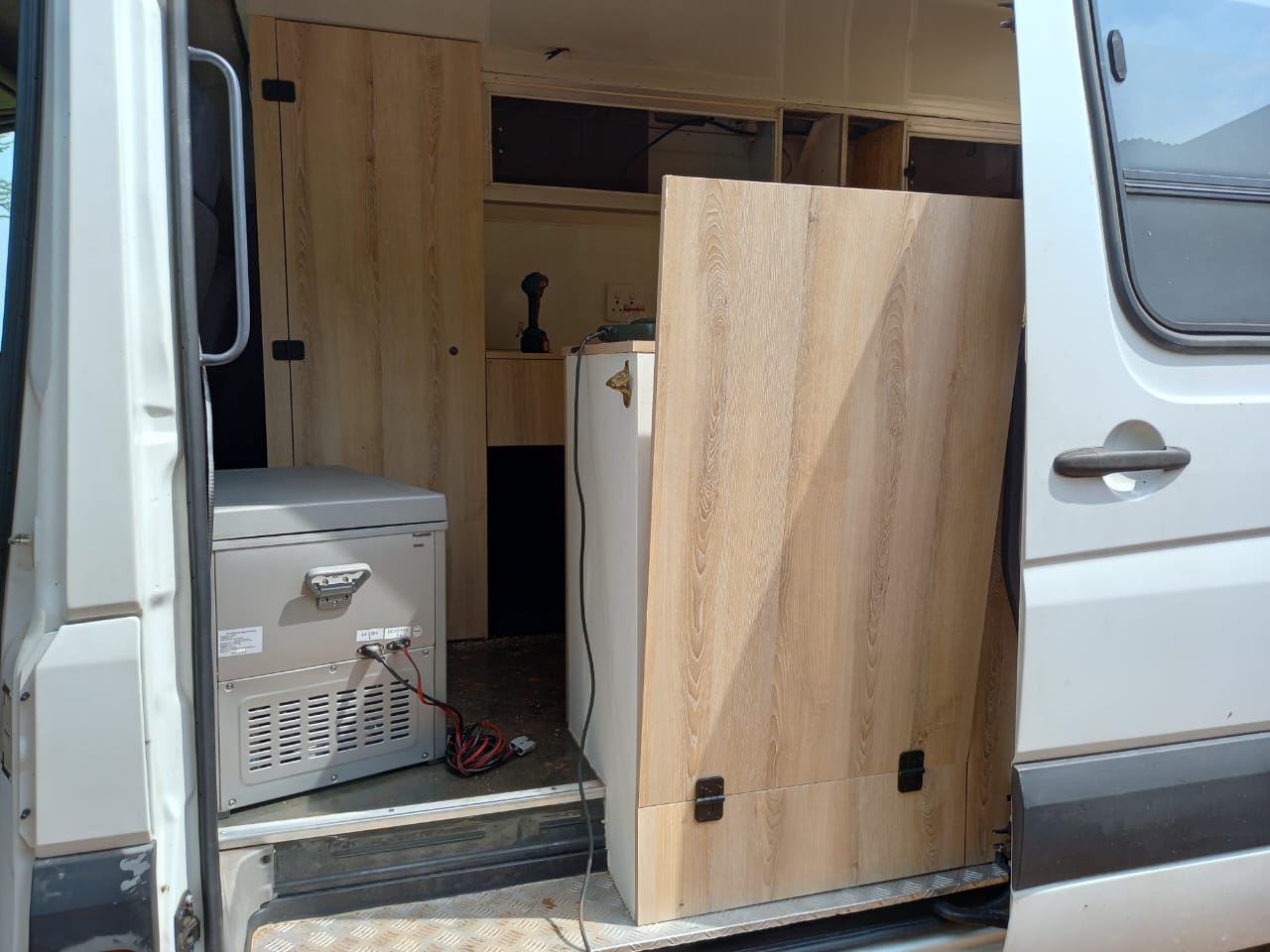

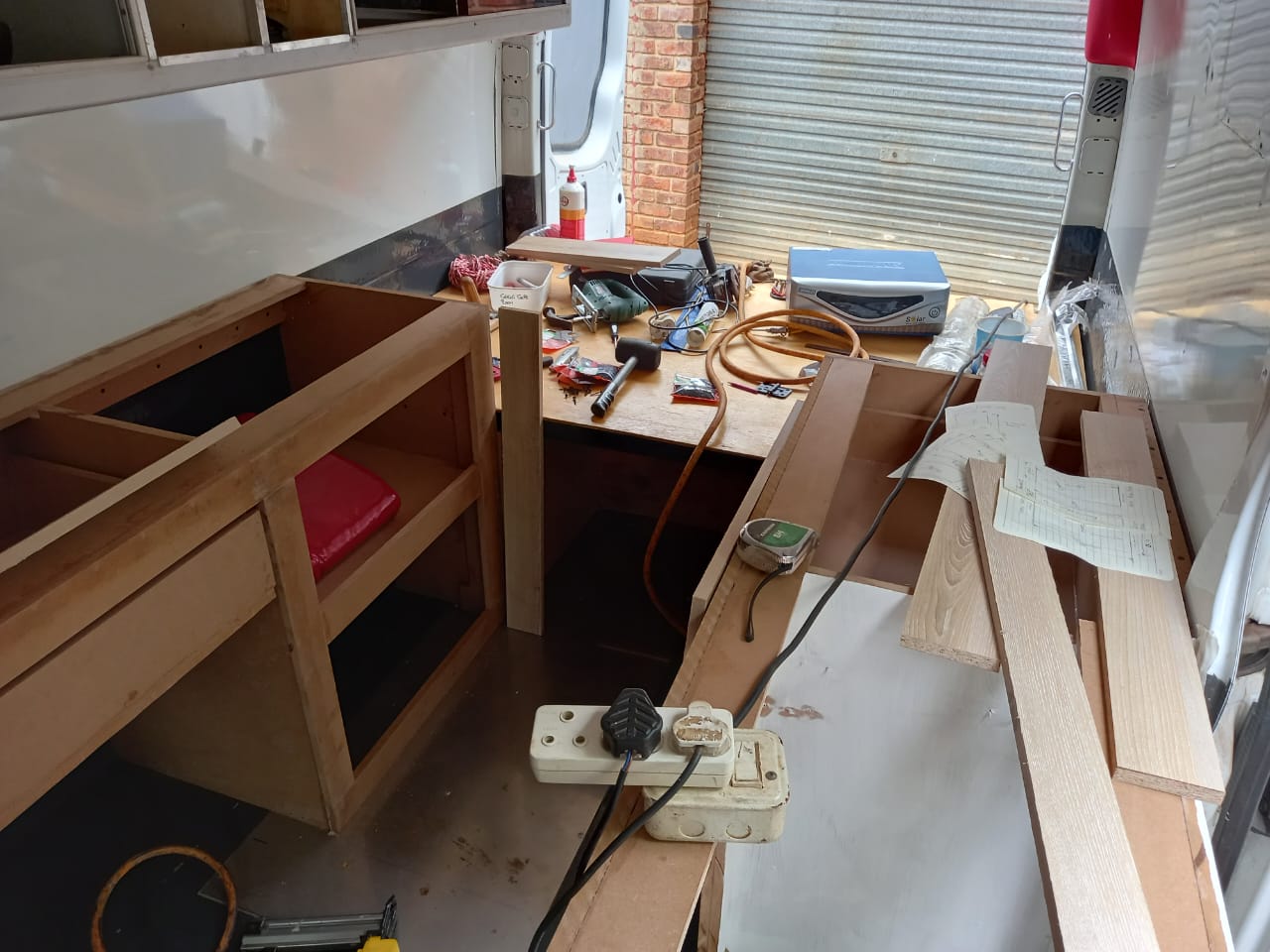

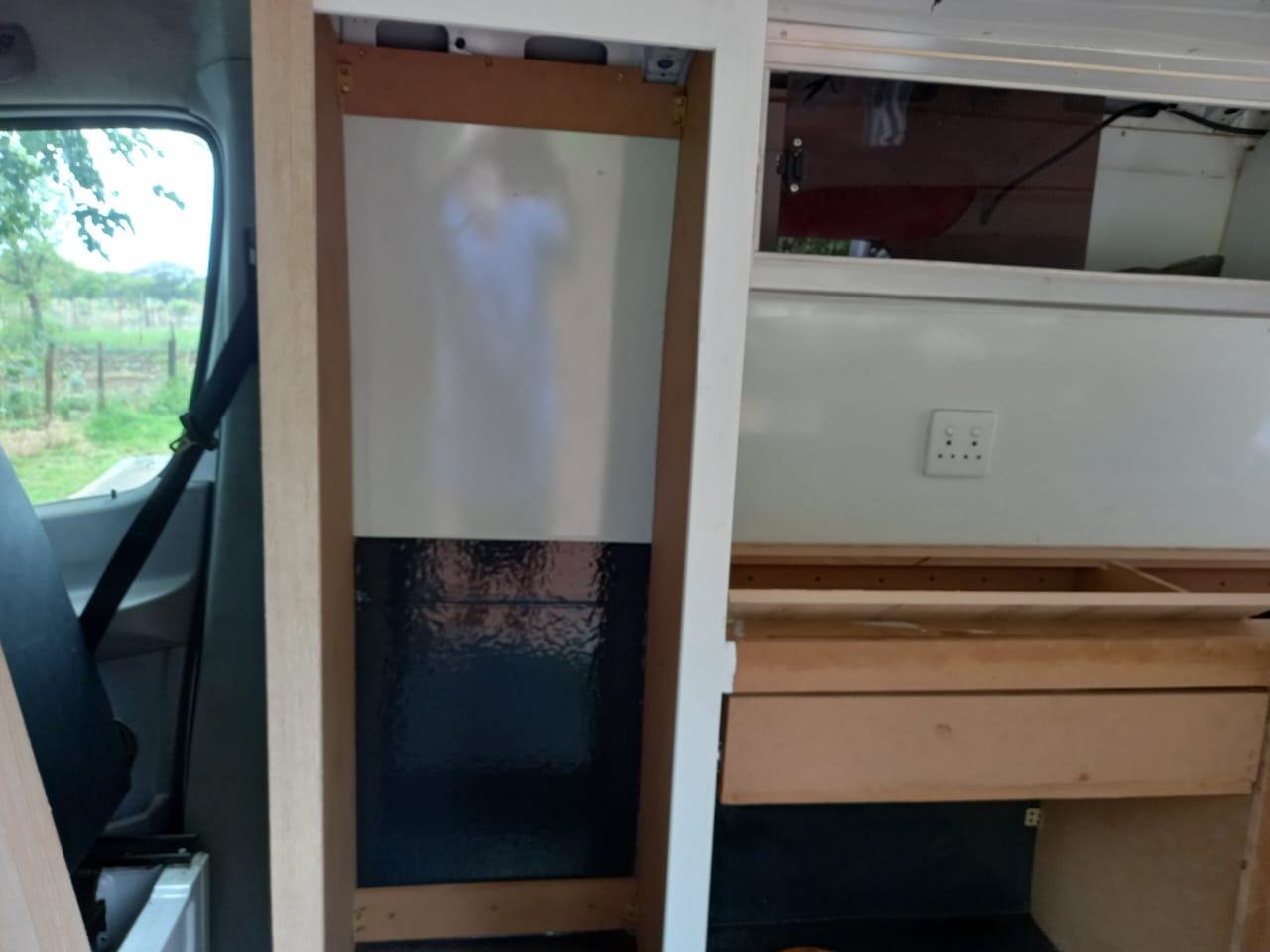

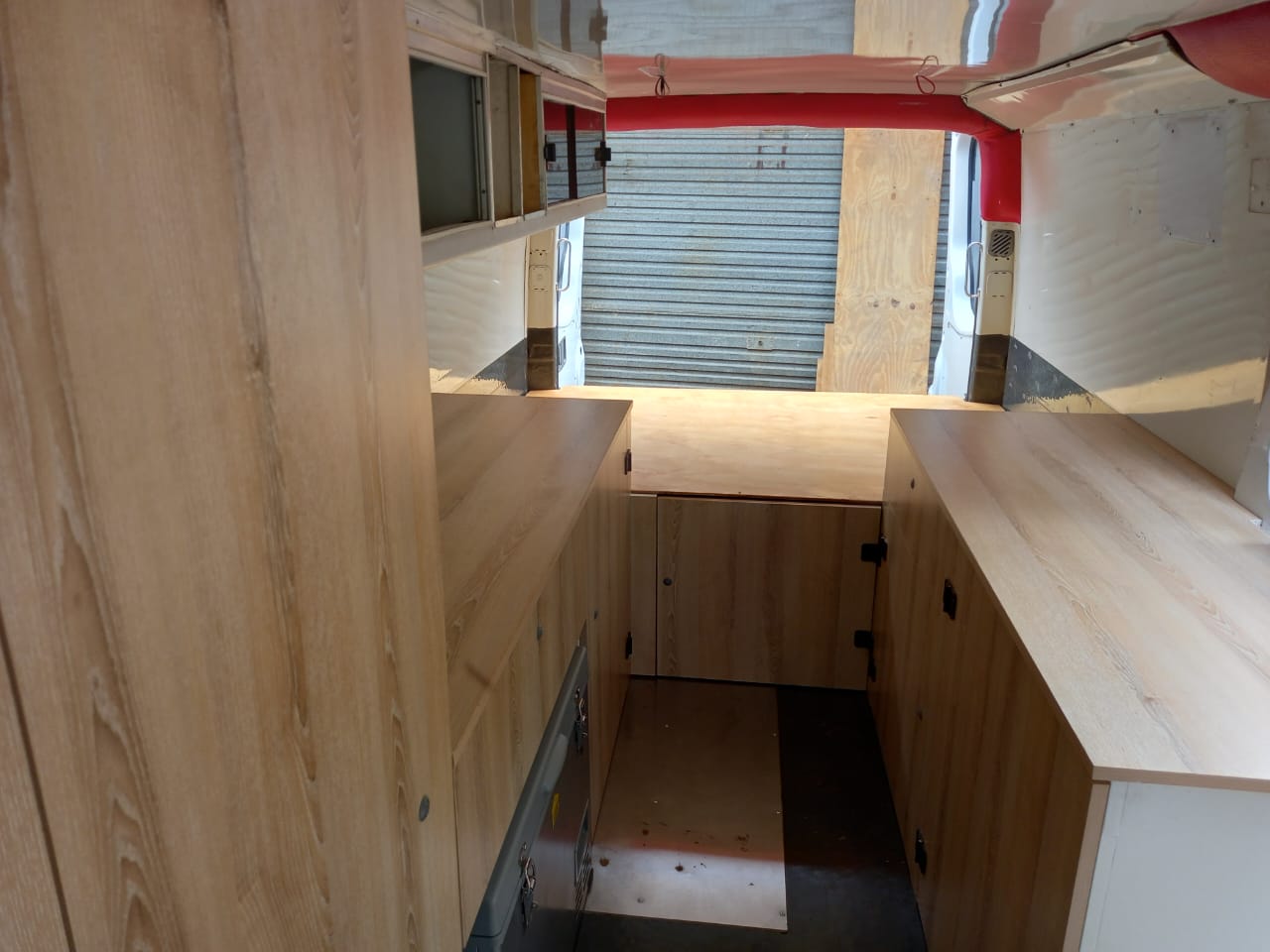

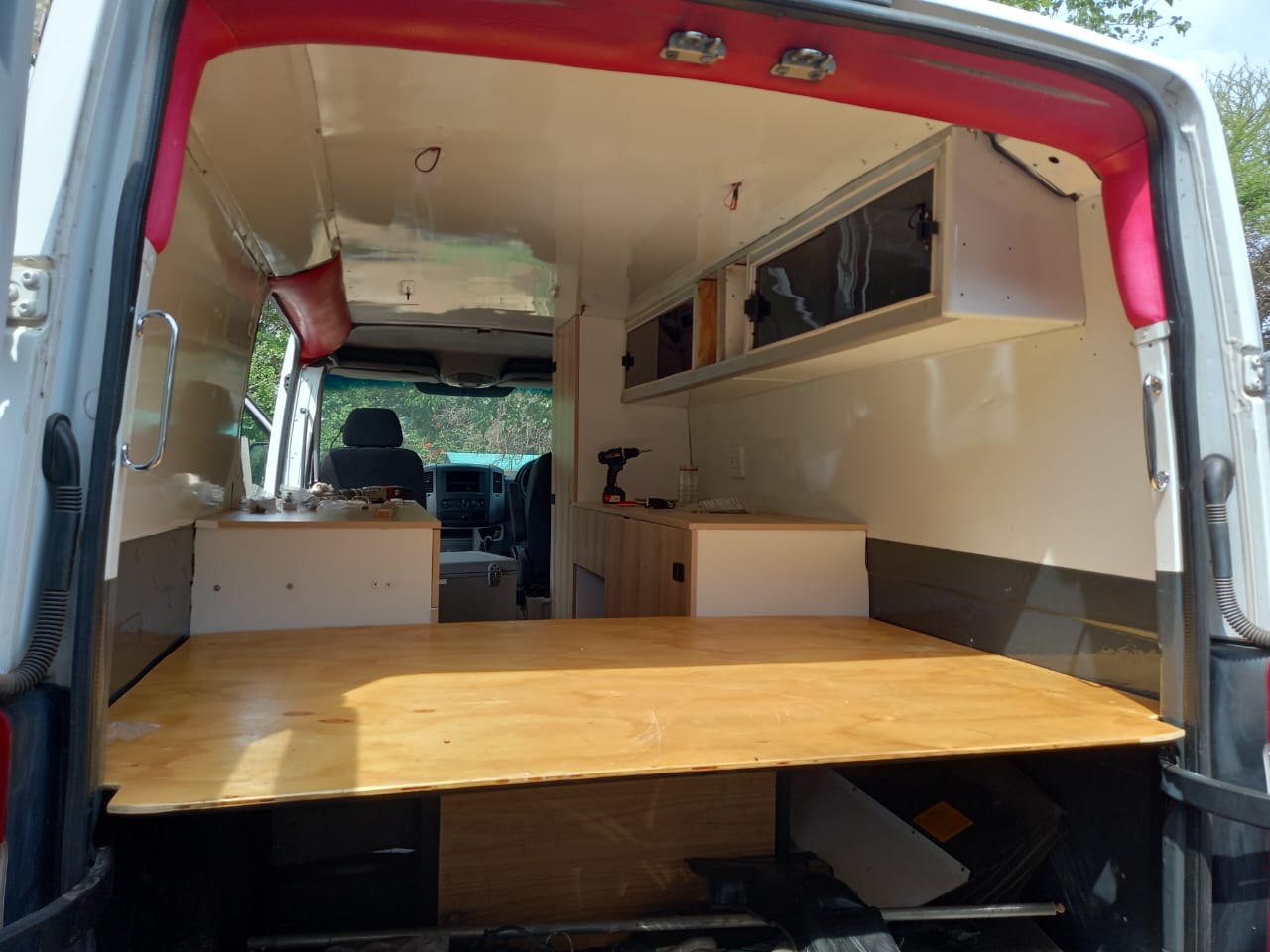

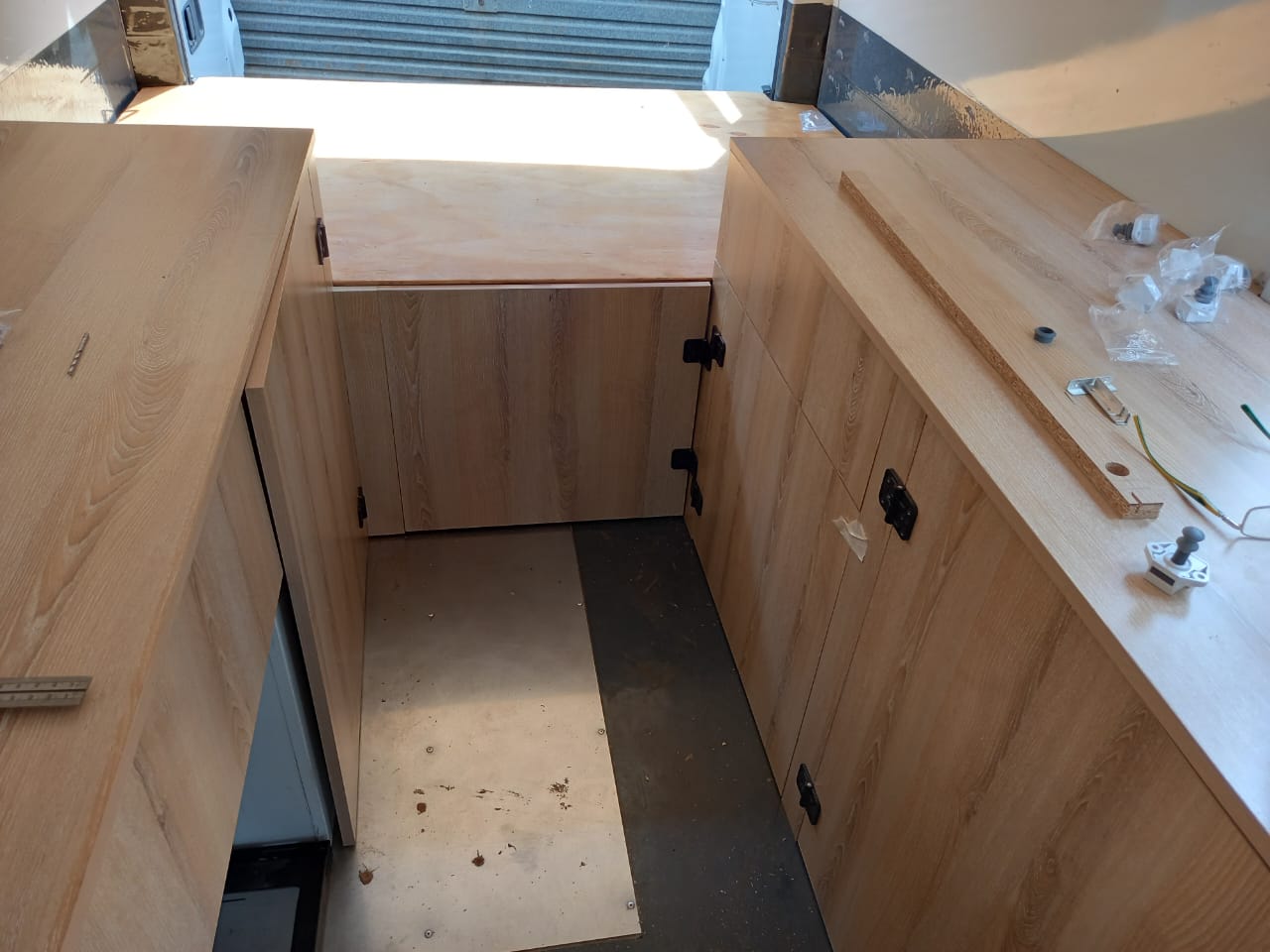

With the mechanical conversion complete, attention turns to the interior — custom cabinetry, sleeping platform, overhead lockers, fridge fitout, electrical and expedition-ready storage to turn the Sprinter into a liveable overland vehicle.

Part 9

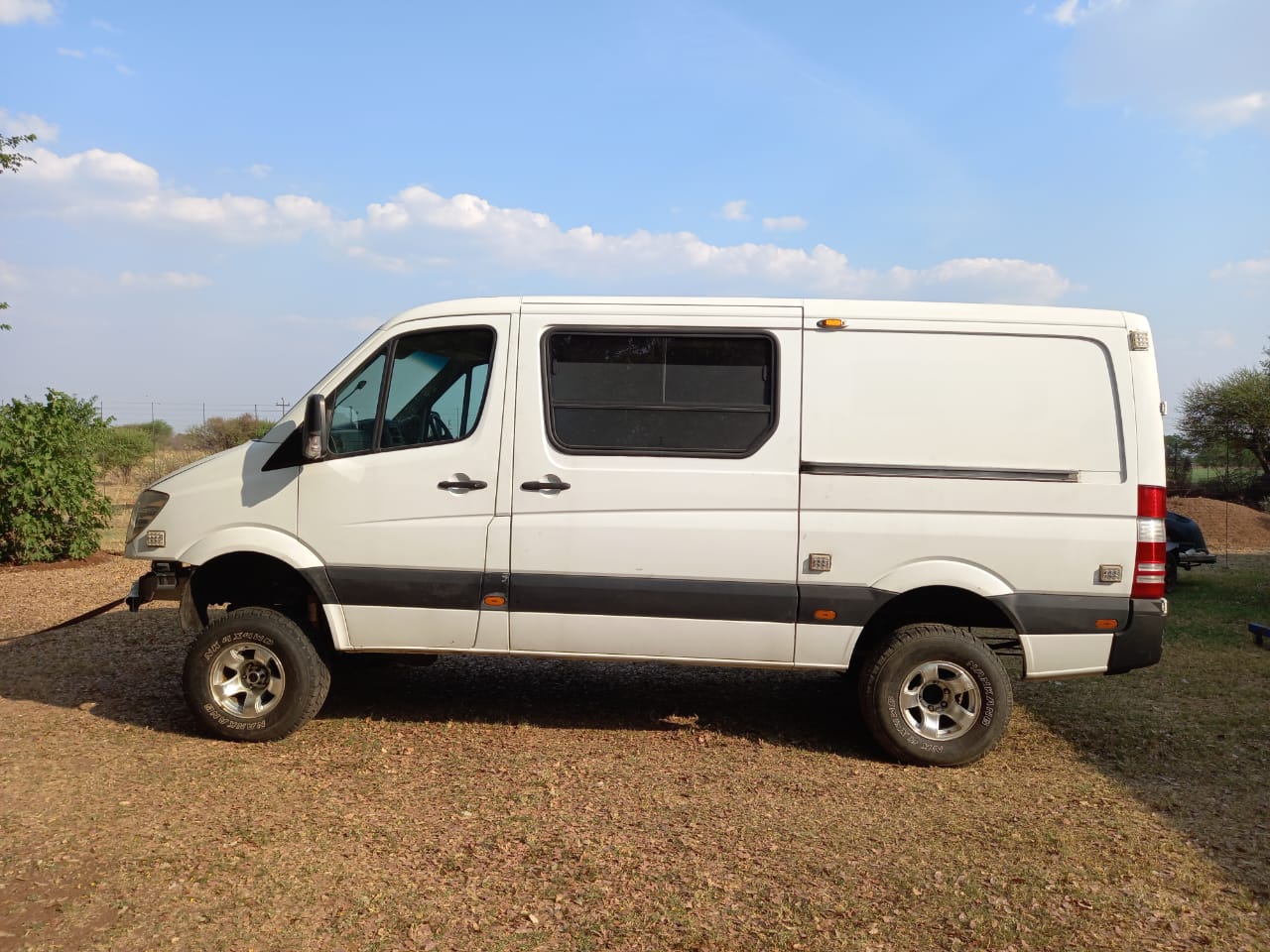

Completed Build — Interview & Overview

The finished vehicle is presented with a full walkthrough interview — covering the technical challenges, the engineering decisions made throughout the build, and what it's like to drive a van with genuine 4x4 capability.
